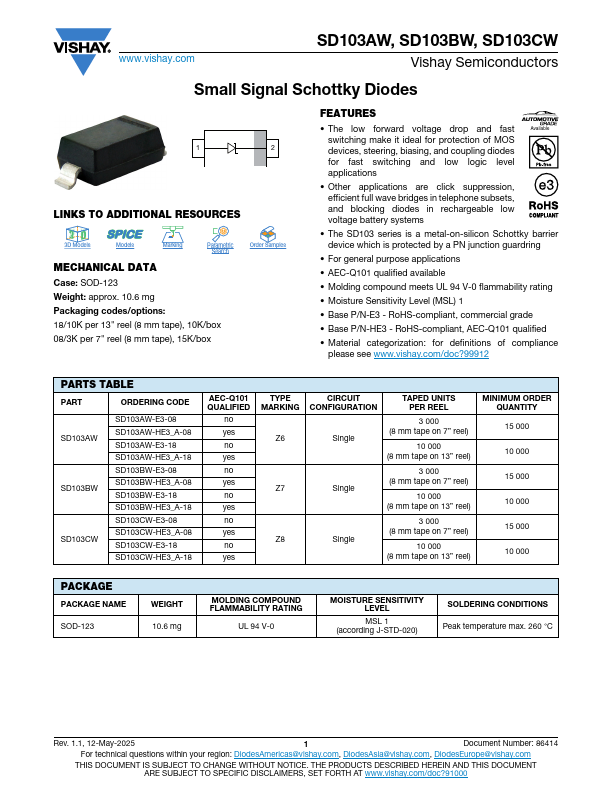

SD103CW Datasheet | Vishay

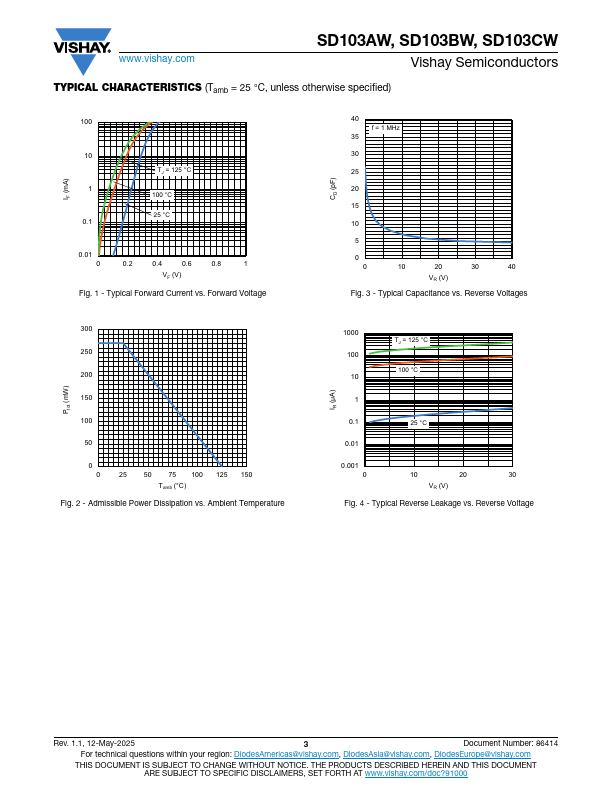

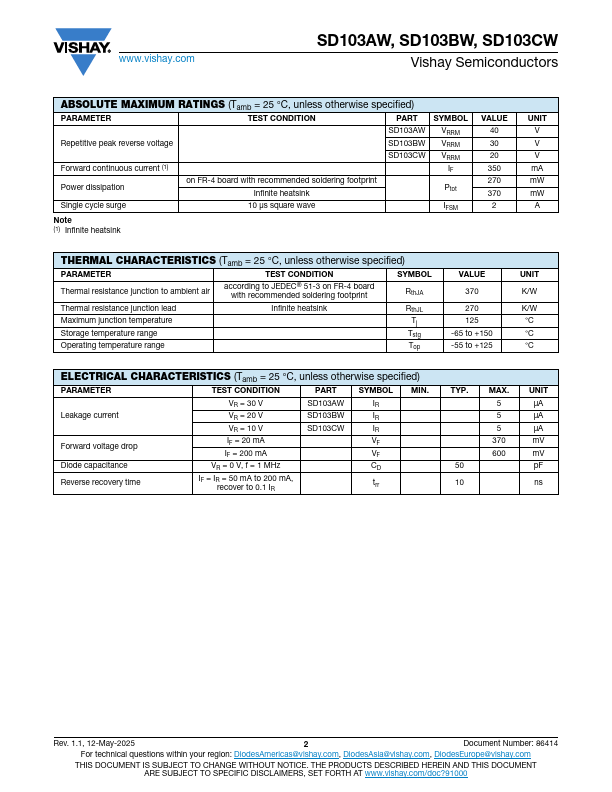

FEATURES - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level applications Available - Other applications are click suppression, efficient full wave bridges in telephone subsets, and blocking diodes in rechargeable low voltage battery systems - The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring - For general purpose applications - AEC-Q101 qualified available - Molding pound meets UL 94 V-0 flammability rating - Moisture Sensitivity Level (MSL) 1 - Base P/N-E3 - Ro HS-pliant, mercial grade - Base P/N-HE3 - Ro HS-pliant, AEC-Q101 qualified - Material categorization: for definitions of pliance please see .vishay./doc?99912 PARTS TABLE PART ORDERING CODE SD103AW SD103BW SD103CW SD103AW-E3-08 SD103AW-HE3_A-08 SD103AW-E3-18 SD103AW-HE3_A-18 SD103BW-E3-08 SD103BW-HE3_A-08 SD103BW-E3-18 SD103BW-HE3_A-18 SD103CW-E3-08 SD103CW-HE3_A-08 SD103CW-E3-18 SD103CW-HE3_A-18 AEC-Q101 QUALIFIED no yes no yes no yes no yes no yes no yes TYPE MARKING Z6 Z7 Z8 CIRCUIT CONFIGURATION TAPED UNITS PER REEL Single 3 000 (8 mm tape on 7” reel) 10 000 (8 mm tape on 13” reel) Single 3 000 (8 mm tape on 7” reel) 10 000 (8 mm tape on 13” reel) Single 3 000 (8 mm tape on 7” reel) 10 000 (8 mm tape on 13” reel) MINIMUM ORDER QUANTITY 15 000 10 000 15 000 10 000 15 000 10 000 PACKAGE PACKAGE NAME SOD-123 WEIGHT 10.6 mg MOLDING POUND FLAMMABILITY...
