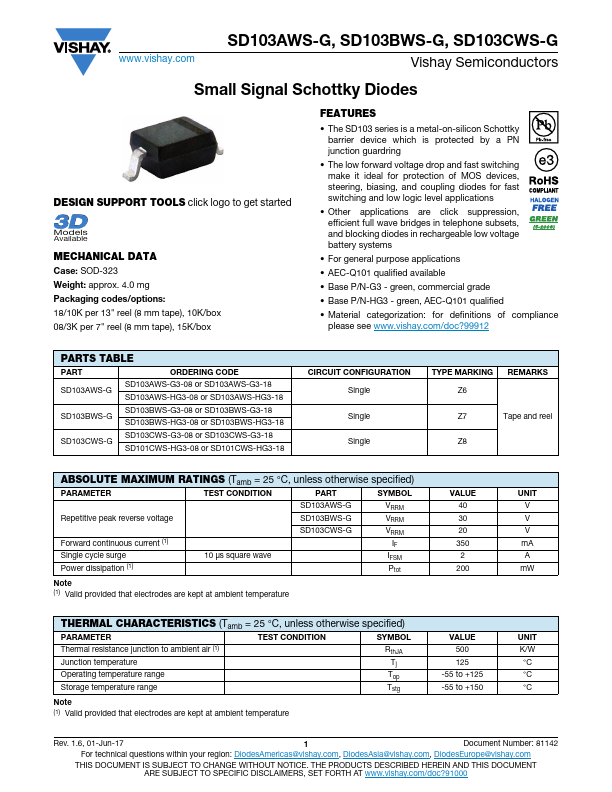

SD103CWS-G Datasheet | Vishay

FEATURES - The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level applications - Other applications are click suppression, efficient full wave bridges in telephone subsets, and blocking diodes in rechargeable low voltage battery systems - For general purpose applications - AEC-Q101 qualified available - Base P/N-G3 - green, mercial grade - Base P/N-HG3 - green, AEC-Q101 qualified - Material categorization: for definitions of pliance please see .vishay./doc?99912 PARTS TABLE PART ORDERING CODE SD103AWS-G3-08 or SD103AWS-G3-18 SD103AWS-G SD103AWS-HG3-08 or SD103AWS-HG3-18 SD103BWS-G3-08 or SD103BWS-G3-18 SD103BWS-G SD103BWS-HG3-08 or SD103BWS-HG3-18 SD103CWS-G3-08 or SD103CWS-G3-18 SD103CWS-G SD101CWS-HG3-08 or SD101CWS-HG3-18 CIRCUIT CONFIGURATION Single Single Single TYPE MARKING Z6 REMARKS Z7 Tape and reel Z8 ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL Repetitive peak reverse voltage Forward continuous current (1) Single cycle surge Power dissipation (1) 10 μs square wave SD103AWS-G SD103BWS-G SD103CWS-G VRRM VRRM VRRM IF IFSM Ptot Note (1) Valid provided that electrodes are kept at ambient temperature THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER...
