TCND5000 - Reflective Optical Sensor

General Description

The TCND5000 is a reflective sensor that includes an infrared emitter and pin photodiode in a surface mount package which blocks visible light.

Key Features

  • Package type: surface mount.
  • Detector type: pin photodiode.
  • Dimensions (L x W x H in mm): 6 x 4.3 x 3.75.
  • Peak operating distance: 6 mm.
  • Operating range within > 20 % relative collector current: 2 mm to 25 mm.
  • Typical output current under test: Ira > 0.11 μA.
  • Daylight blocking filter.
  • High linearity.
  • Emitter wavelength: 940 nm.
  • Lead (Pb)-free soldering released.
  • Moisture sensitivity level (MSL): 4.

📥 Download Datasheet

Datasheet Details

Part number TCND5000
Manufacturer Vishay
File Size 190.36 KB
Description Reflective Optical Sensor
Datasheet download datasheet TCND5000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TCND3000 Reflective Sensor for Touchless Switch Vishay Siliconix
TCN4040 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE TelCom Semiconductor
TCN75 2-WIRE SERIAL TEMPERATURE SENSOR AND THERMAL MONITOR TelCom Semiconductor
TCN75 2-Wire Serial Temperature Sensor and Thermal Monitor Microchip
TCN75A 2-Wire Serial Temperature Sensor Microchip

Other Datasheets by Vishay

Part Number Description
TCNT2000 Reflective Optical Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

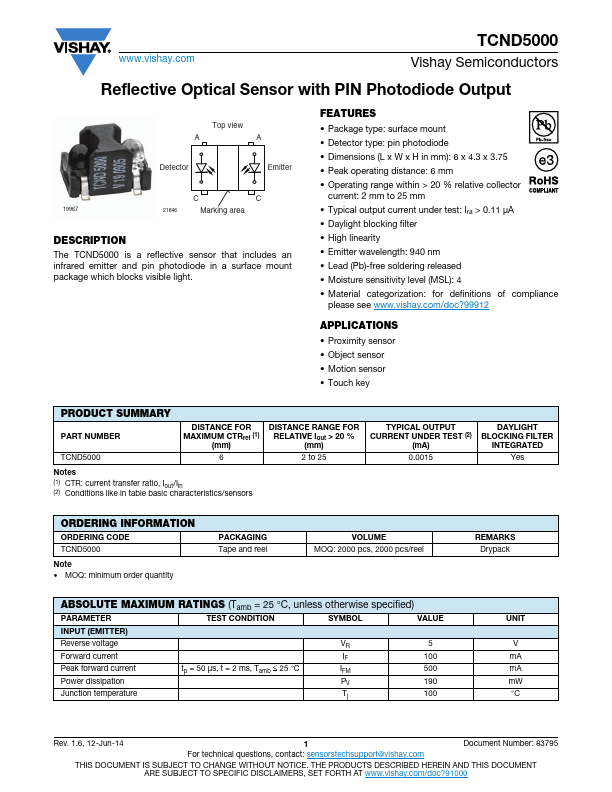

www.vishay.com TCND5000 Vishay Semiconductors Reflective Optical Sensor with PIN Photodiode Output Top view A A Detector Emitter 19967 21846 C C Marking area DESCRIPTION The TCND5000 is a reflective sensor that includes an infrared emitter and pin photodiode in a surface mount package which blocks visible light. FEATURES • Package type: surface mount • Detector type: pin photodiode • Dimensions (L x W x H in mm): 6 x 4.3 x 3.75 • Peak operating distance: 6 mm • Operating range within > 20 % relative collector current: 2 mm to 25 mm • Typical output current under test: Ira > 0.
