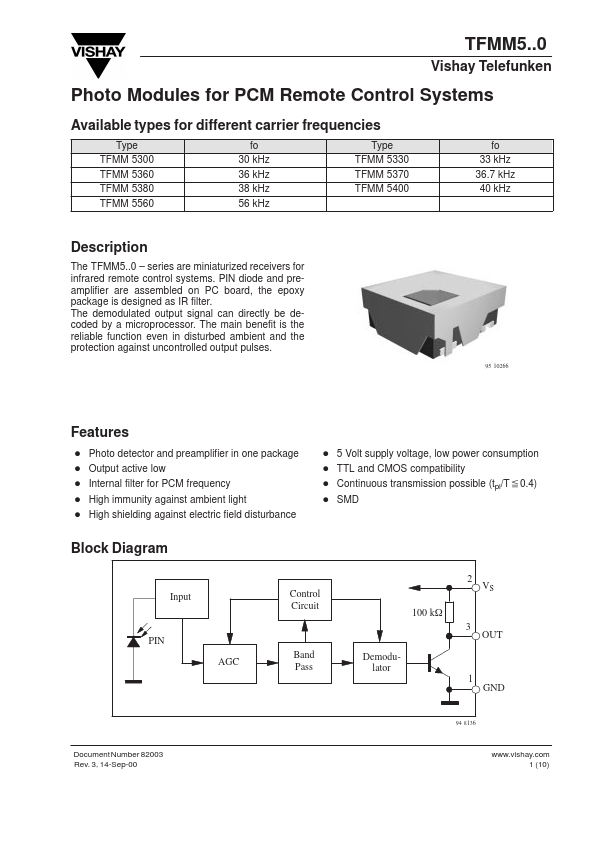

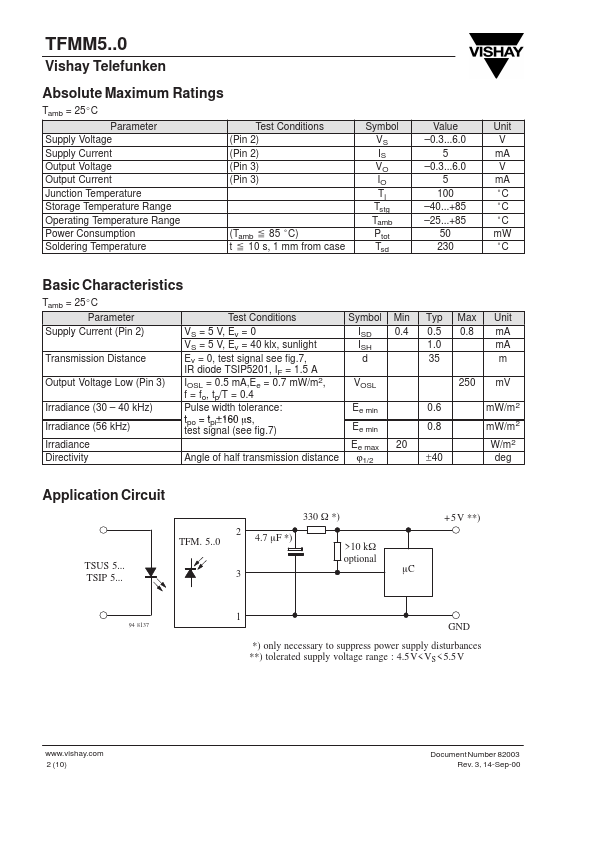

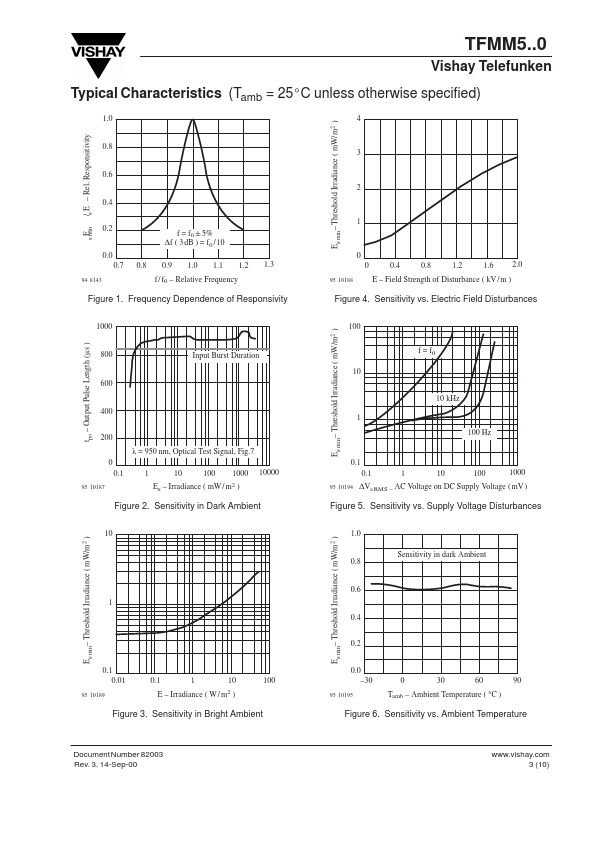

TFMM5..0 Vishay Telefunken Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type TFMM 5300 TFMM 5360 TFMM 5380 TFMM 5560 fo 30 k Hz 36 k Hz 38 k Hz 56 k Hz Type TFMM 5330 TFMM 5370 TFMM 5400 fo 33 k Hz 36.7 k Hz 40 k Hz Description The TFMM5..0 - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on PC board, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the reliable function even in disturbed ambient and the protection against uncontrolled output pulses. 95 10266 Features D Photo detector and preamplifier in one package D Output active low D Internal filter for PCM frequency D High immunity against ambient light D High shielding against electric field disturbance D 5 Volt supply voltage, low power consumption D TTL and CMOS patibility D Continuous transmission possible (tpi/Tx0.4) D SMD Block Diagram Input PIN AGC Control Circuit Band Pass 100 k W Demodulator 2 VS 3 OUT 1 GND Document Number 82003 Rev. 3, 14-Sep-00 94 8136 .vishay. 1 (10) TFMM5..0 Vishay...
