TFMM5370 datasheet by Vishay.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | TFMM5370 |
|---|---|
| Datasheet | TFMM5370 TFMM5300 Datasheet (PDF) |
| File Size | 121.25 KB |
| Manufacturer | Vishay |
| Description | Photo Modules |
|
|

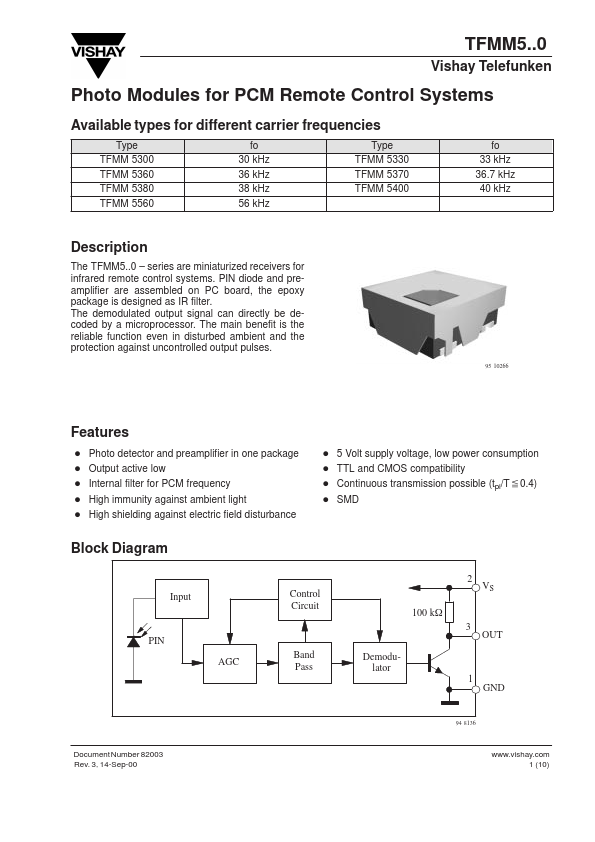

The TFMM5..0 series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on PC board, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor.
| Part Number | Description |
|---|---|
| TFMM5300 | Photo Modules |
| TFMM5330 | Photo Modules |
| TFMM5360 | Photo Modules |
| TFMM5380 | Photo Modules |
| TFMM5400 | Photo Modules |
| TFMM5560 | Photo Modules |
