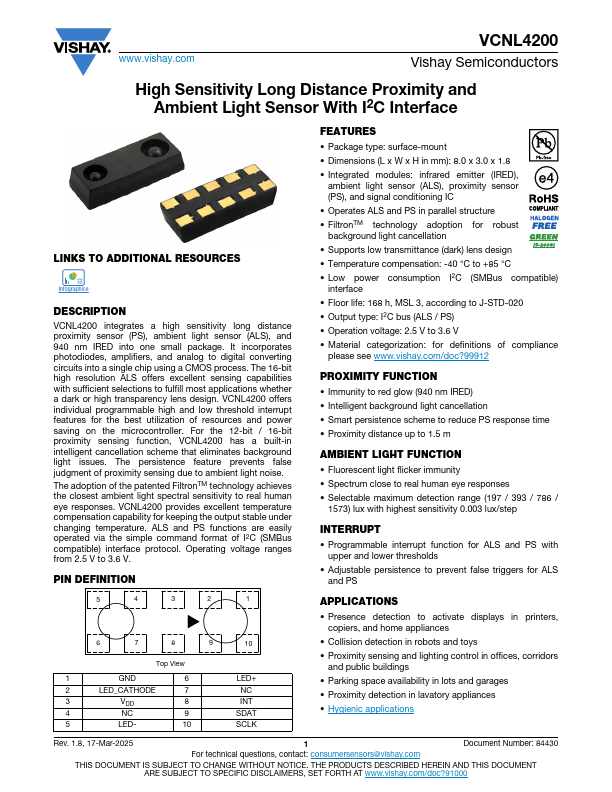

VCNL4200 Overview
VCNL4200 integrates a high sensitivity long distance proximity sensor (PS), ambient light sensor (ALS), and 940 nm IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip using a CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether a dark or high...
VCNL4200 Key Features
- Package type: surface-mount
- Dimensions (L x W x H in mm): 8.0 x 3.0 x 1.8
- Integrated modules: infrared emitter (IRED)
- Operates ALS and PS in parallel structure
- FiltronTM technology adoption for robust background light cancellation
- Supports low transmittance (dark) lens design
- Temperature pensation: -40 °C to +85 °C
- Low power consumption I2C (SMBus patible) interface
- Floor life: 168 h, MSL 3, according to J-STD-020
- Output type: I2C bus (ALS / PS)
