VS-MBRS1100-M3 - High Performance Schottky Rectifier

Download the VS-MBRS1100-M3 datasheet PDF (VS-MBRS190-M3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high performance schottky rectifier.

Description

The VS-MBRS190-M3, VS-MBRS1100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards.

Features

  • Small foot print, surface mountable.
  • Low forward voltage drop.
  • High frequency operation.
  • Guard ring for enhanced ruggedness and long term reliability.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VS-MBRS190-M3-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VS-MBRS1100-M3
Manufacturer Vishay
File Size 124.75 KB
Description High Performance Schottky Rectifier
Datasheet download datasheet VS-MBRS1100-M3 Datasheet

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

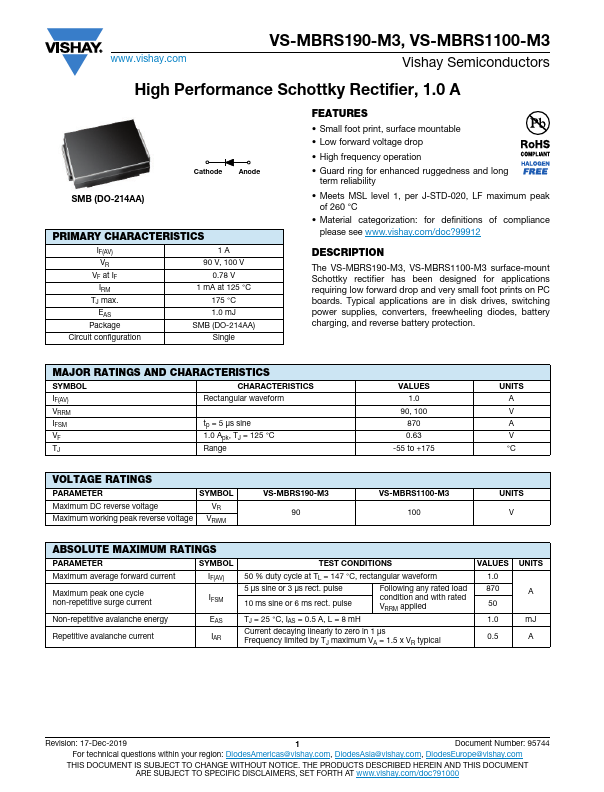

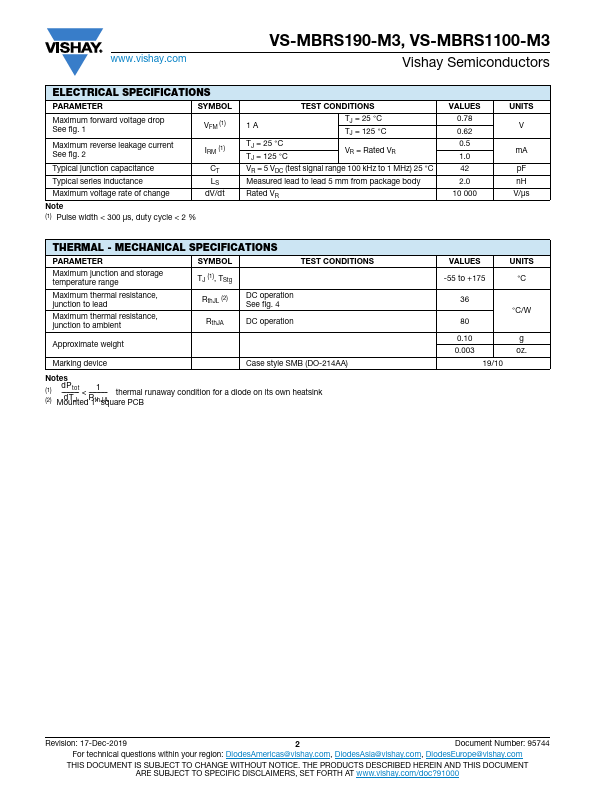

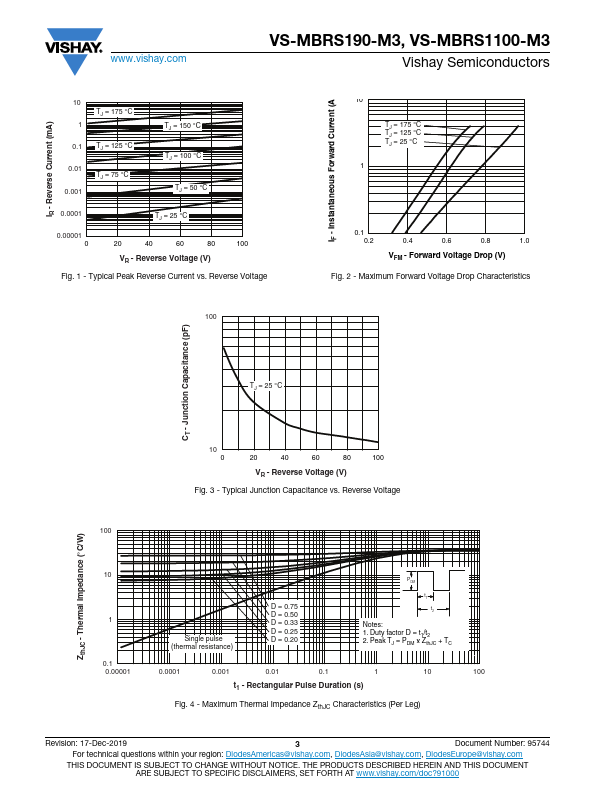

www.vishay.com VS-MBRS190-M3, VS-MBRS1100-M3 Vishay Semiconductors High Performance Schottky Rectifier, 1.0 A SMB PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM TJ max. Diode variation EAS Cathode Anode SMB 1A 90 V, 100 V 0.78 V 1 mA at 125 °C 175 °C Single die 1.0 mJ FEATURES • Small foot print, surface mountable • Low forward voltage drop • High frequency operation • Guard ring for enhanced ruggedness and long term reliability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION The VS-MBRS190-M3, VS-MBRS1100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards.
Published: |
