VP2128 - Synchronous-Rectified Buck Converter

Datasheet Summary

Features

  • The VP2128 is an efficiency and low-cost synchronous step-down converter with integrated low RDS(ON) high-side 150mΩ/low-side 130mΩ MOSFET switch. It is capable of delivering 2A continuous output current over a wide range of supplying voltage from 4.75V to 18V. With a simple voltage divider, the output voltage is easily adjustable from 0.922V to 16V. - 4.75V to 18V Input Voltage Range - Adjustable Output from 0.922V to 16V - Continuous 2A Output Current - 93% Conversion Efficiency at 5V/1A Out.

📥 Download Datasheet

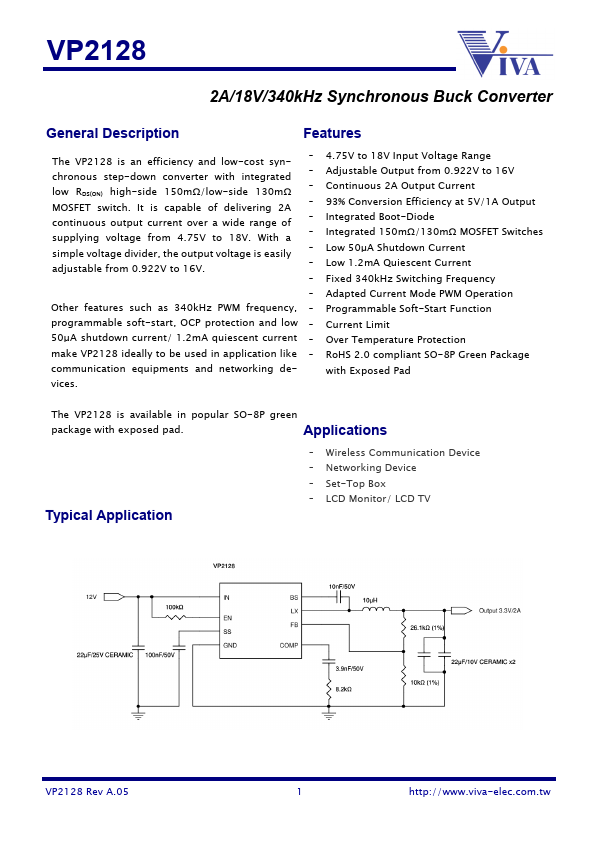

Datasheet preview – VP2128

Datasheet Details

Part number VP2128
Manufacturer Viva Electronics
File Size 1.60 MB
Description Synchronous-Rectified Buck Converter
Datasheet download datasheet VP2128 Datasheet

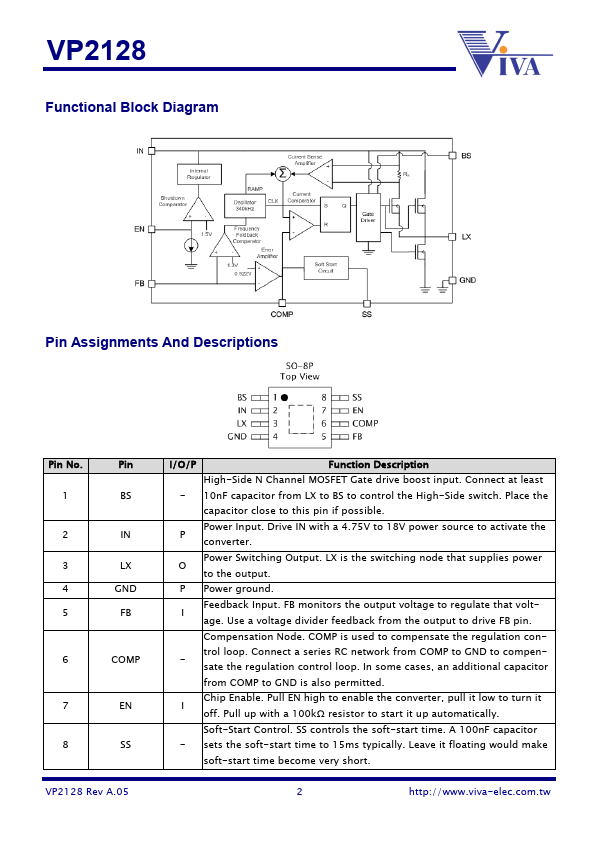

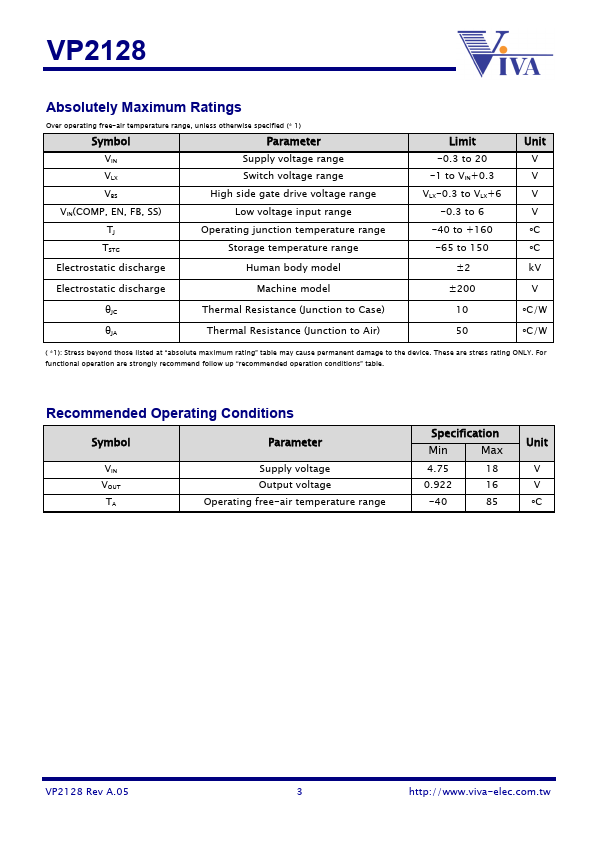

Additional preview pages of the VP2128 datasheet.

📁 Similar Datasheet

  • VP2106 - P-Channel Vertical DMOS FETs (Supertex Inc)
  • VP211 - Dual 90MHz 6-Bit Analog to Digital Converter (Mitel Networks Corporation)
  • VP211 - Dual 90MHz 6-Bit Analog to Digital Converter (Zarlink Semiconductor)
  • VP2110 - P-Channel Vertical DMOS FETs (Supertex Inc)
  • VP213 - Dual 90MHz 6-Bit Analog to Digital Converter (Mitel Networks Corporation)
  • VP215 - Dual 90MHz 6-Bit Analog to Digital Converter (Mitel Networks Corporation)
  • VP216 - Dual 90MHz 6-Bit Analog to Digital Converter with VCO (Mitel Networks Corporation)
  • VP216 - Dual 90MHz 6-Bit Analog to Digital Converter (Zarlink Semiconductor)
  • VP2-0066-R - Inductors and Transformers (EATON)
  • VP2-0083-R - Inductors and Transformers (EATON)
Other Datasheets by Viva Electronics

    Full PDF Text Transcription

    Click to expand full text
    VP2128 2A/18V/340kHz Synchronous Buck Converter General Description Features The VP2128 is an efficiency and low-cost synchronous step-down converter with integrated low RDS(ON) high-side 150mΩ/low-side 130mΩ MOSFET switch. It is capable of delivering 2A continuous output current over a wide range of supplying voltage from 4.75V to 18V. With a simple voltage divider, the output voltage is easily adjustable from 0.922V to 16V. - 4.75V to 18V Input Voltage Range - Adjustable Output from 0.922V to 16V - Continuous 2A Output Current - 93% Conversion Efficiency at 5V/1A Output - Integrated Boot-Diode - Integrated 150mΩ/130mΩ MOSFET Switches - Low 50μA Shutdown Current - Low 1.
