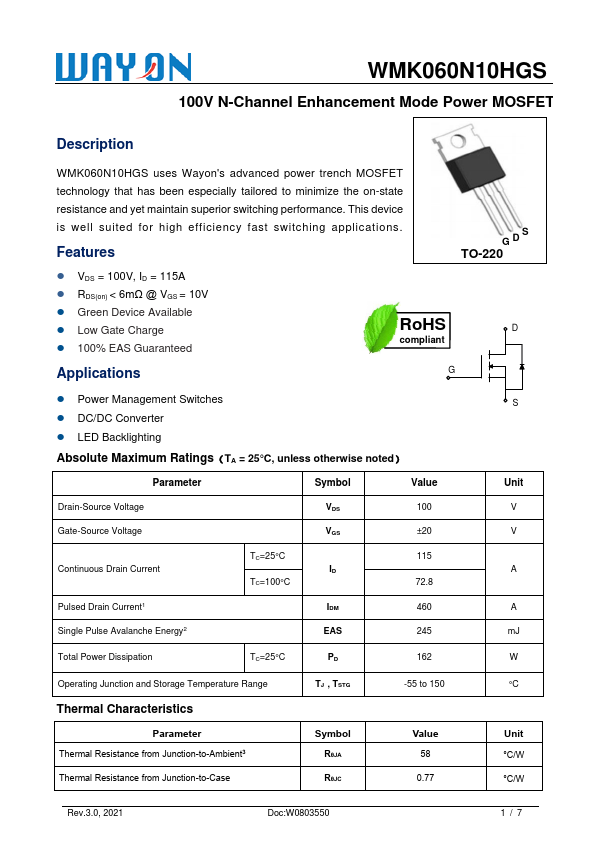

Datasheet Summary
100V N-Channel Enhancement Mode Power MOSFET
Description
WMK060N10HGS uses Wayon's advanced power trench MOSFET technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. This device is well suited for high efficiency fast switching applications.
Features
TO-220
- VDS = 100V, ID = 115A
- RDS(on) < 6mΩ @ VGS = 10V
- Green Device Available
- Low Gate Charge
- 100% EAS Guaranteed
RoHS
D pliant
Applications
- Power Management Switches
- DC/DC Converter
- LED...
