HT7528-2
HT7528-2 is LOW DROPOUT LINEAR REGULATOR manufactured by WDJ semiconductor.
HT75XX-2

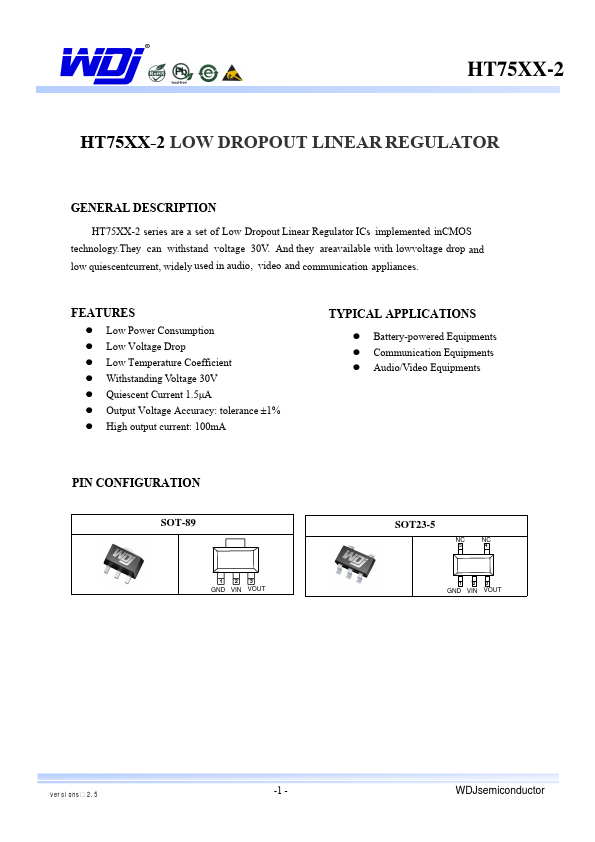

HT75XX-2 LOW DROPOUT LINEAR REGULATOR
GENERAL DESCRIPTION
HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented in CMOS technology.They can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and munication appliances.
Features
- Low Power Consumption
- Low Voltage Drop
- Low Temperature Coefficient
- Withstanding Voltage 30V
- Quiescent Current 1.5μA
- Output Voltage Accuracy: tolerance ±1%
- High output current: 100m A
TYPICAL APPLICATIONS
- Battery-powered Equipments
- munication Equipments
- Audio/Video Equipments
PIN CONFIGURATION
SOT-89
WDJsemiconductor
1 23 GND VIN VOUT
SOT23-5
NC NC
WDJsemiconductor
1 23
GND VIN VOUT versionsÿ 2.5
-1
- WDJsemiconductor
HT75XX-2

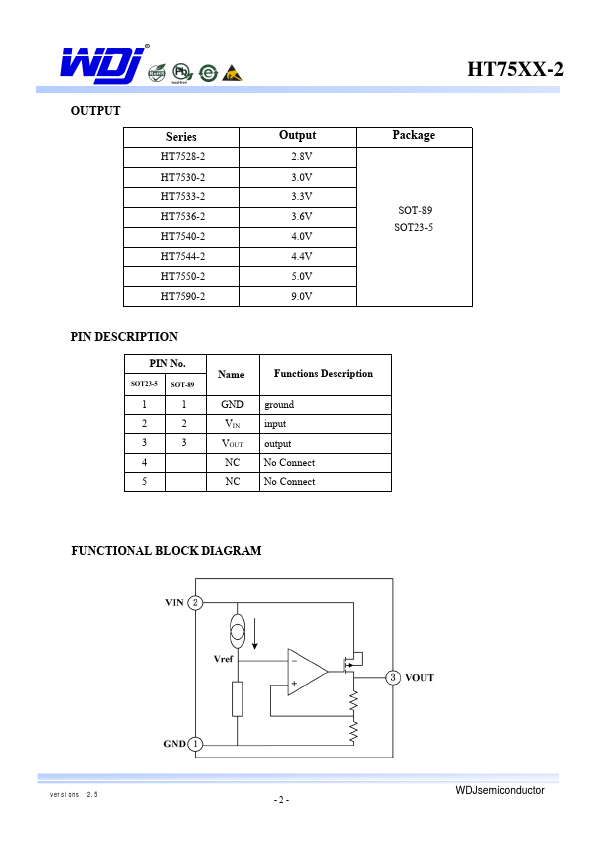

OUTPUT
Series...
