HT7533-2 Datasheet (WDJ semiconductor)

Part HT7533-2
Description LOW DROPOUT LINEAR REGULATOR
Category LDO Regulator
Manufacturer WDJ semiconductor
Size 6.48 MB
HT7533-2 Datasheet (PDF) Download
Pricing from 0.1006 USD, available from Win Source and Chipsmall Limited.
🏠
WDJ semiconductor

HT7533-2 Overview

Key Specifications

Package: TO-92
Max Operating Temp: 85 °C
Min Operating Temp: -40 °C

Description

HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented inCMOS can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and communication appliances.

Key Features

  • Low Power Consumption
  • Low Voltage Drop
  • Low Temperature Coefficient
  • Withstanding Voltage 30V
  • Quiescent Current 1.5μA

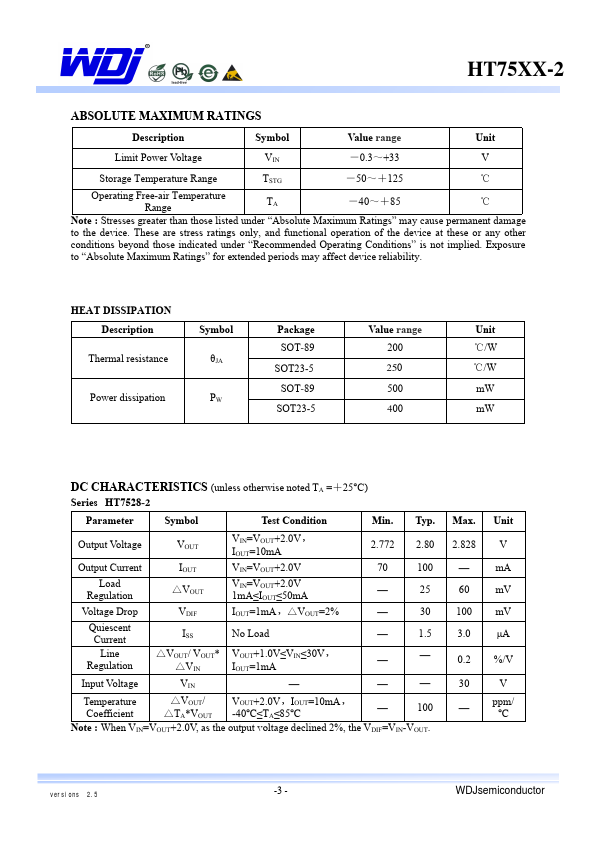

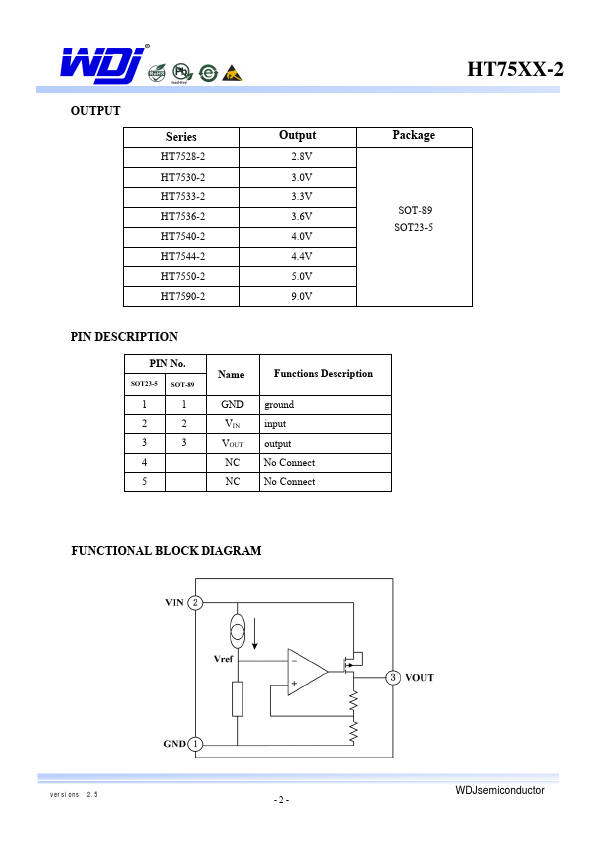

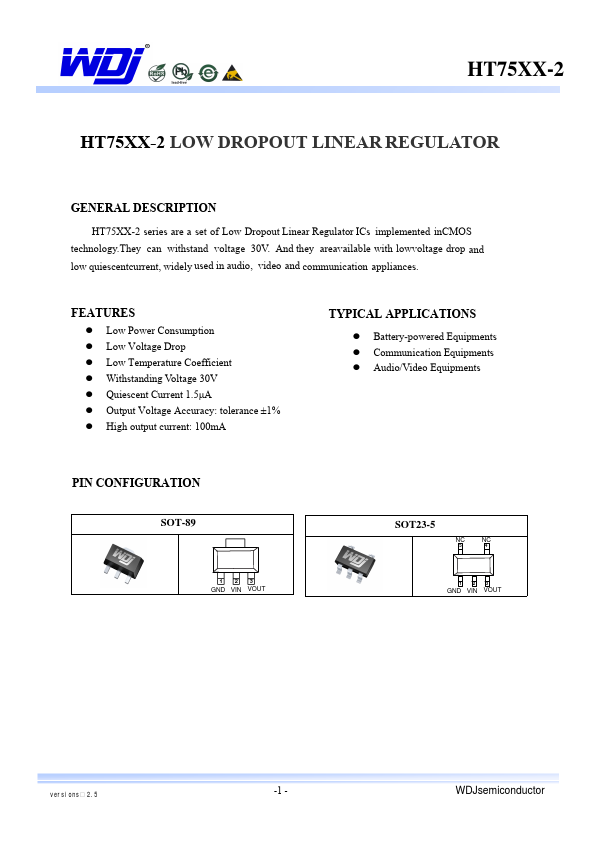

HT7533-2 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Win Source 347500 500+ : 0.1006 USD
1215+ : 0.0826 USD
1875+ : 0.08 USD
2585+ : 0.0774 USD		 View Offer
Chipsmall Limited 400000 1+ : 0.14198 USD
10+ : 0.09466 USD
100+ : 0.05679 USD
500+ : 0.05206 USD		 View Offer
