MBR130ET1 Description

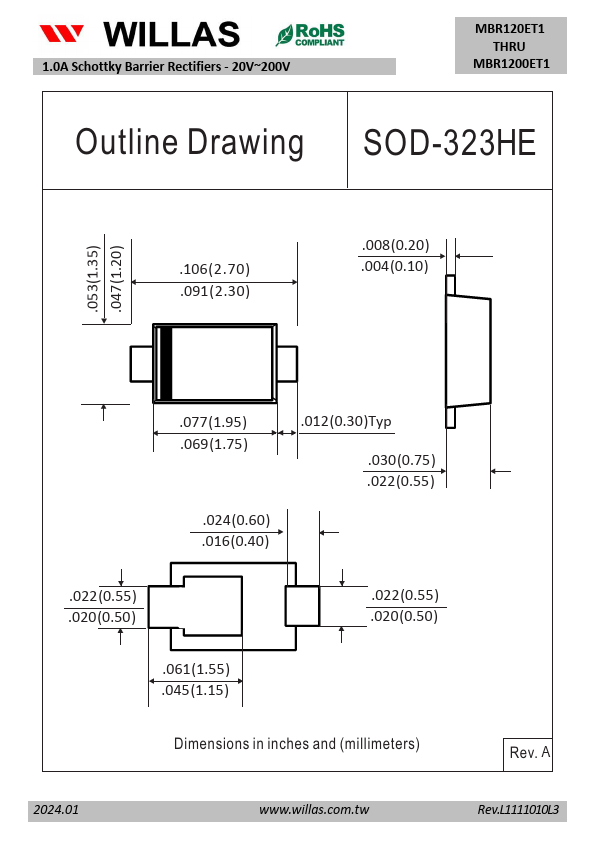

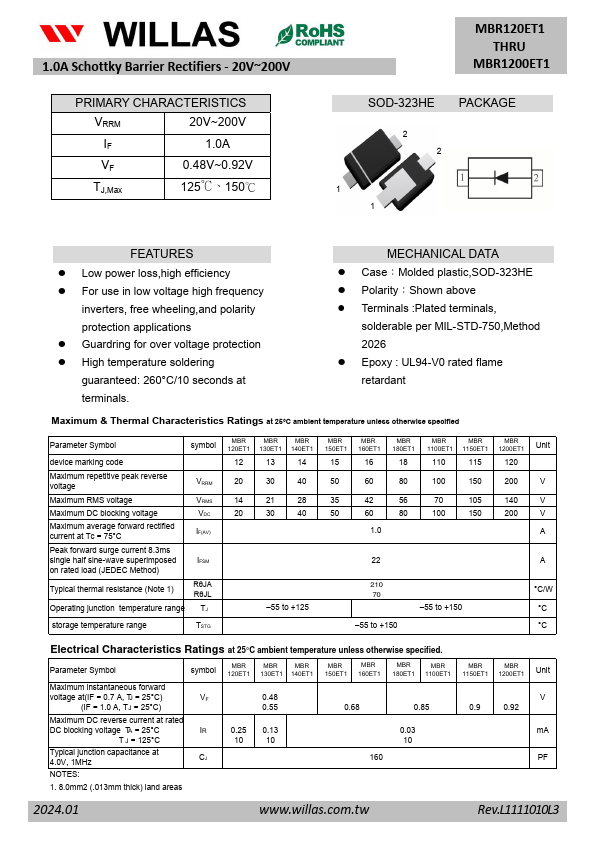

1.0A Schottky Barrier Rectifiers - 20V~200V PRIMARY CHARACTERISTICS VRRM 20V~200V IF 1.0A VF 0.48V~0.92V TJ,Max 125℃、150℃ MBR120ET1 THRU MBR1200ET1 SOD-323HE PACKAGE 2 2.
MBR130ET1 Key Features
- Low power loss,high efficiency
- For use in low voltage high frequency
MBR130ET1 Applications
- Guardring for over voltage protection
