MBR140ET1
MBR140ET1 is 1.0A Schottky Barrier Rectifiers manufactured by WILLAS.
- Part of the MBR120ET1 comparator family.
- Part of the MBR120ET1 comparator family.
FEATURES
- Low power loss,high efficiency
- For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
- Guardring for over voltage protection
- High temperature soldering guaranteed: 260°C/10 seconds at terminals.
MECHANICAL DATA
- Case：Molded plastic,SOD-323HE
- Polarity：Shown above
- Terminals :Plated terminals, solderable per MIL-STD-750,Method 2026
- Epoxy : UL94-V0 rated flame retardant

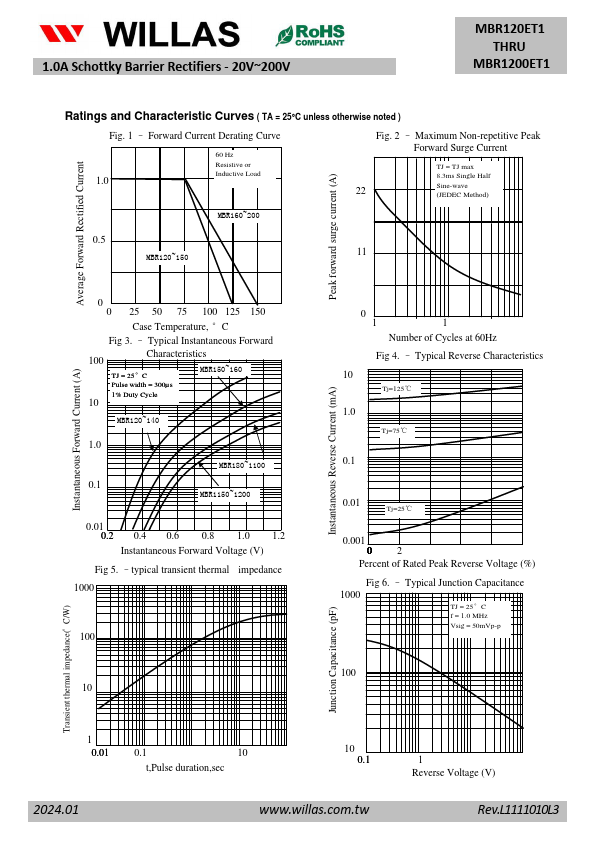

Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified
Parameter Symbol symbol device marking code
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at Tc = 75°C
VRMS VDC
IF(AV)
Peak forward surge current 8.3ms single half sine-wave superimposed
IFSM on rated load (JEDEC Method)
Typical thermal resistance (Note 1)
RθJA RθJL
Operating junction temperature range TJ
MBR 120ET1
MBR 130ET1
MBR 140ET1
- 55 to +125
MBR...
