MBR180ET1
MBR180ET1 is 1.0A Schottky Barrier Rectifiers manufactured by WILLAS.
- Part of the MBR120ET1 comparator family.
- Part of the MBR120ET1 comparator family.
1.0A Schottky Barrier Rectifiers
- 20V~200V

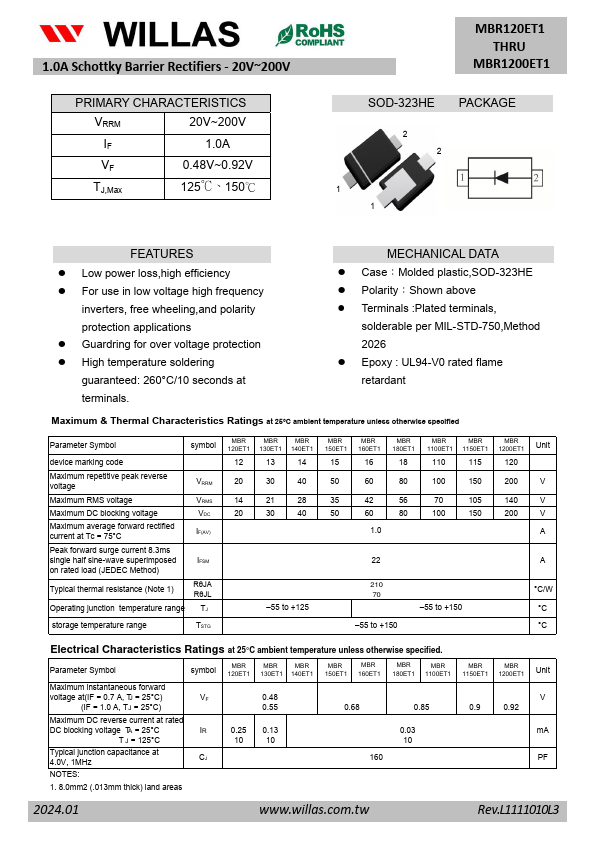

PRIMARY CHARACTERISTICS
VRRM
20V~200V
1.0A
0.48V~0.92V
TJ,Max
125℃、150℃
MBR120ET1 THRU
MBR1200ET1

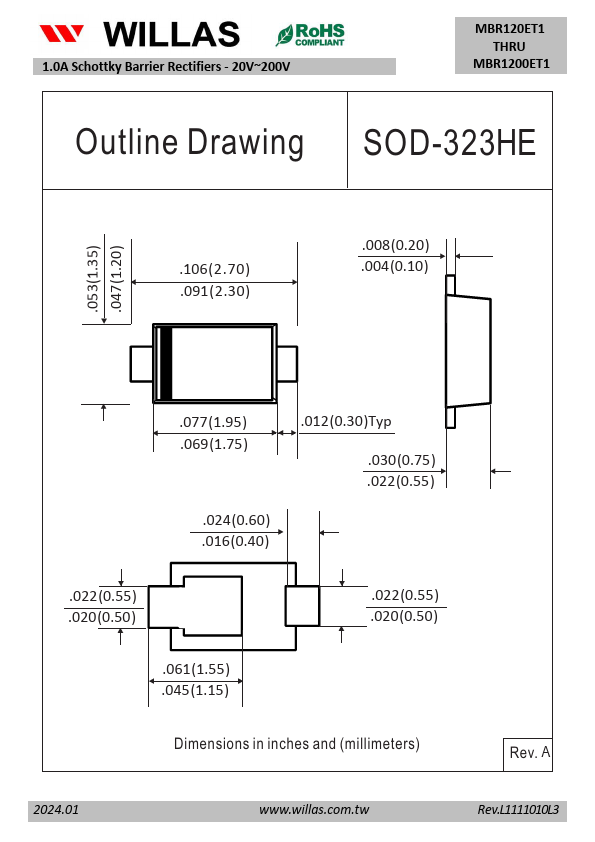

SOD-323HE PACKAGE
2 2
1 1
Features
- Low power loss,high efficiency
- For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
- Guardring for over voltage protection
- High temperature soldering guaranteed: 260°C/10 seconds at terminals.
MECHANICAL DATA
- Case：Molded plastic,SOD-323HE
- Polarity：Shown above
- Terminals :Plated terminals, solderable per MIL-STD-750,Method 2026
- Epoxy : UL94-V0 rated flame retardant
Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified
Parameter Symbol symbol device marking code
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at Tc = 75°C
VRMS...
