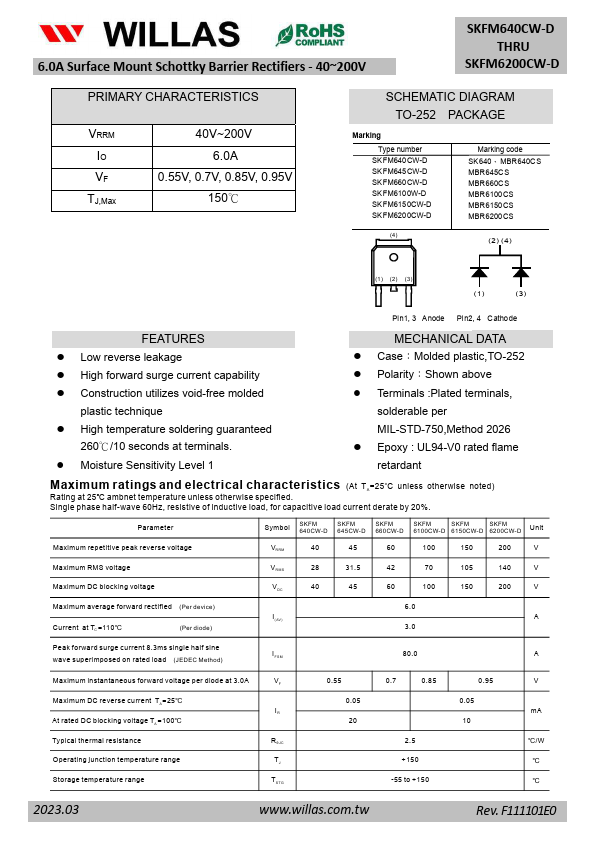

SKFM6200CW-D
SKFM6200CW-D is 6.0A Surface Mount Schottky Barrier Rectifiers manufactured by WILLAS.
- Part of the SKFM640CW-D comparator family.
- Part of the SKFM640CW-D comparator family.
FEATURES
- Low reverse leakage
- High forward surge current capability
- Construction utilizes void-free molded plastic technique
- High temperature soldering guaranteed
260℃/10 seconds at terminals.
- Moisture Sensitivity Level 1
MECHANICAL DATA

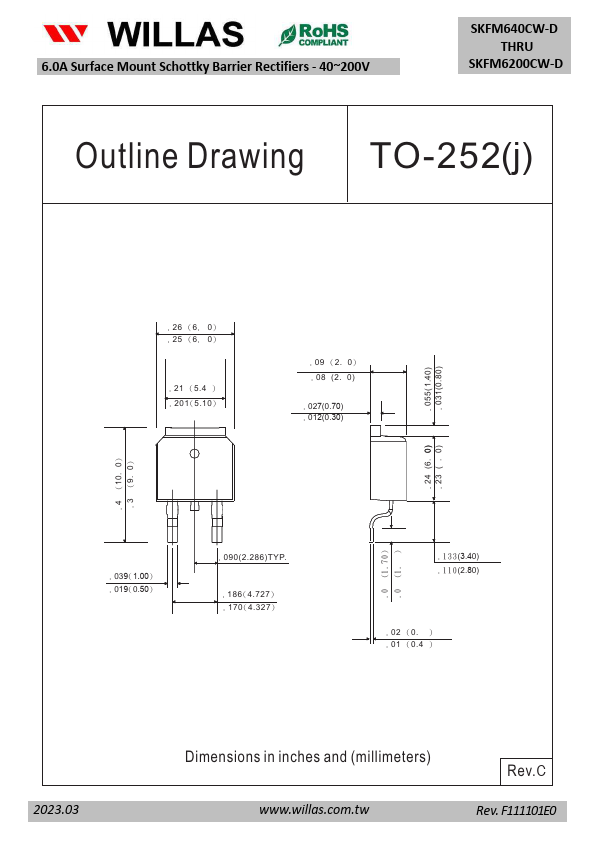

- Case：Molded plastic,TO-252
- Polarity：Shown above
- Terminals :Plated terminals, solderable per MIL-STD-750,Method 2026
- Epoxy : UL94-V0 rated flame retardant
Maximum ratings and electrical characteristics (At TA=25o C unless otherwise noted)
Rating at 25℃ ambnet temperature unless otherwise specified. Single phase half-wave 60Hz, resistive of inductive load, for capacitive load current derate by 20%.
Parameter
Symbol
SKFM 640CW-D
SKFM 645CW-D
SKFM 660CW-D
SKFM
SKFM
SKFM
6100CW-D 6150CW-D 6200CW-D
Unit
Maximum repetitive peak reverse voltage
VR R M
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
Maximum average forward rectified (Per device)
I ( AV )
Current at TC =110℃
(Per diode)
6.0 A
Peak forward surge current 8.3ms single half sine wave superimposed on rated load (JEDEC...
