SKFM660CW-D Description

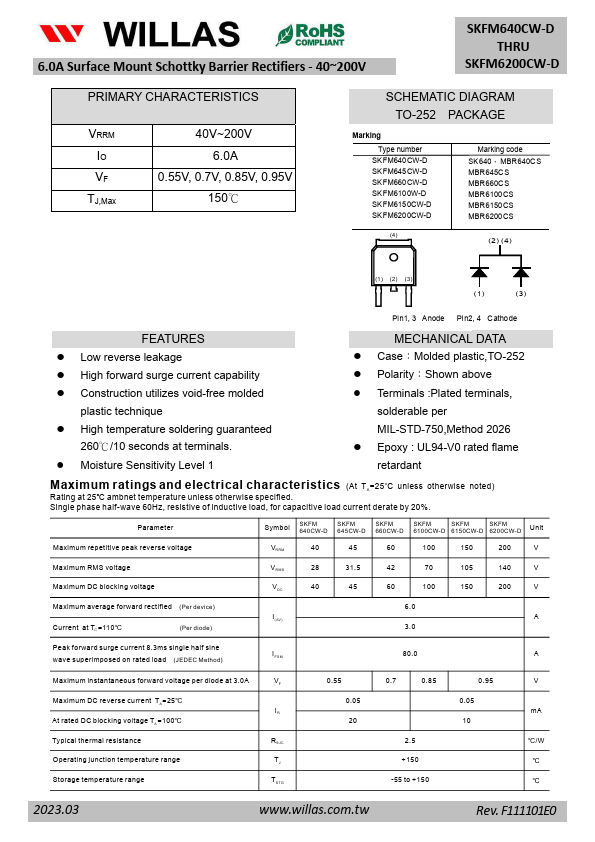

6.0A Surface Mount Schottky Barrier Rectifiers - 40~200V SKFM640CW-D THRU SKFM6200CW-D PRIMARY CHARACTERISTICS VRRM IO VF TJ,Max 40V~200V 6.0A 0.55V, 0.7V, 0.85V, 0.95V 150℃ SCHEMATIC DIAGRAM TO-252 PACKAGE Marking Type number SK FM640 CW-D SK FM645 CW-D SK.
SKFM660CW-D Key Features
- Low reverse leakage
- High forward surge current capability
- Construction utilizes void-free molded
- High temperature soldering guaranteed
- Moisture Sensitivity Level 1
- Case：Molded plastic,TO-252
- Polarity：Shown above
- Terminals :Plated terminals
- Epoxy : UL94-V0 rated flame retardant
- 40~200V
