Datasheet Summary

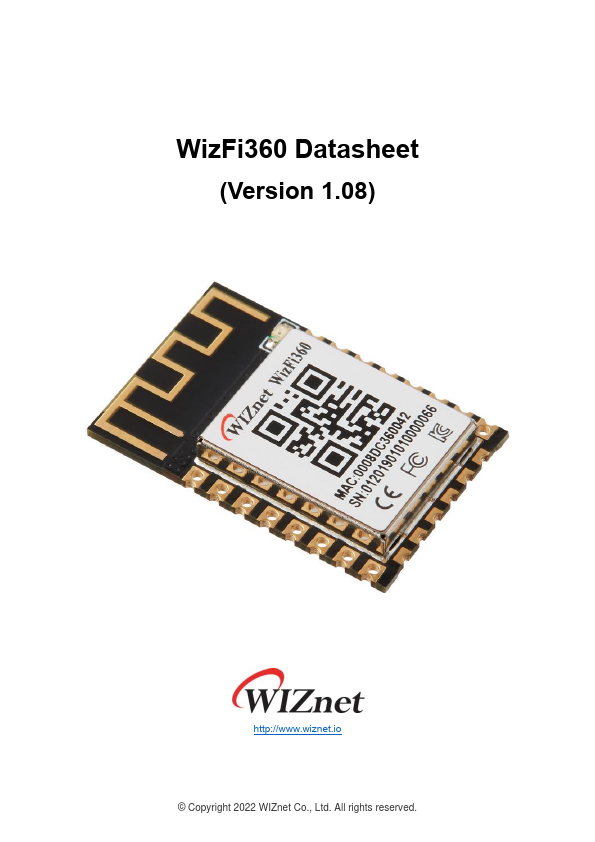

WizFi360 Datasheet
(Version 1.08) http://.wiznet.io © Copyright 2022 WIZnet Co., Ltd. All rights reserved.

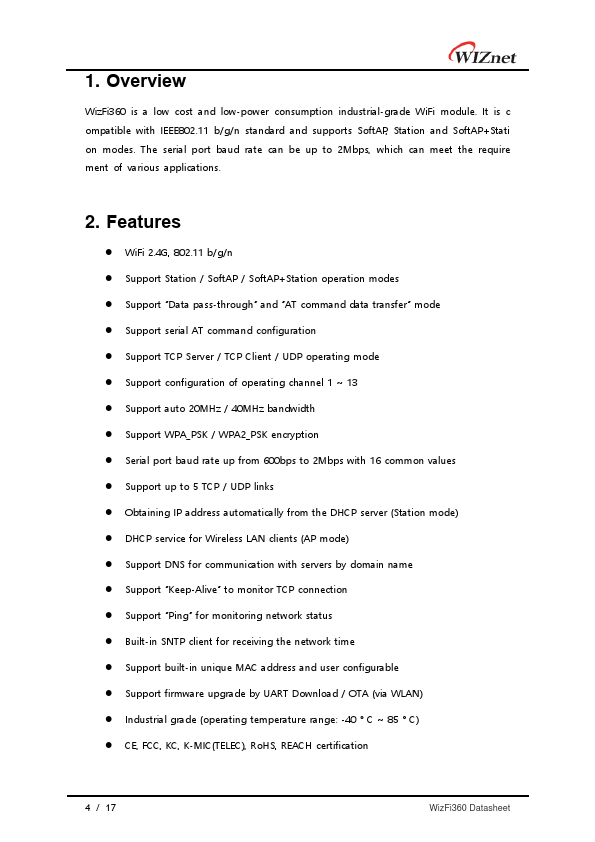

1. Overview
WizFi360 is a low cost and low-power consumption industrial-grade WiFi module. It is c ompatible with IEEE802.11 b/g/n standard and supports SoftAP, Station and SoftAP+Stati on modes. The serial port baud rate can be up to 2Mbps, which can meet the require ment of various applications.
2. Features
- WiFi 2.4G, 802.11 b/g/n
- Support Station / SoftAP / SoftAP+Station operation modes
- Support “Data pass-through” and “AT mand data transfer” mode
- Support serial AT mand configuration
- Support TCP Server / TCP Client / UDP operating mode
- Support configuration of...
