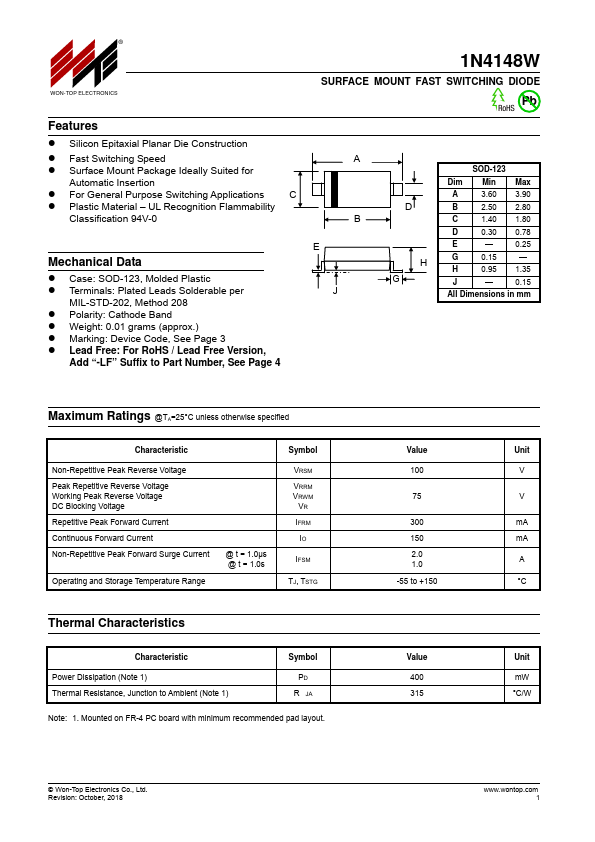

1N4148W
1N4148W is SURFACE MOUNT FAST SWITCHING DIODE manufactured by Won-Top Electronics.
® WON-TOP ELECTRONICS
SURFACE MOUNT FAST SWITCHING DIODE
Pb
Features
- Silicon Epitaxial Planar Die Construction
- Fast Switching Speed
- Surface Mount Package Ideally Suited for
Automatic Insertion
- For General Purpose Switching Applications
- Plastic Material
- UL Recognition Flammability
Classification 94V-0
Mechanical Data
- Case: SOD-123, Molded Plastic
- Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
- Polarity: Cathode Band
- Weight: 0.01 grams (approx.)
- Marking: Device Code, See Page 3
- Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
SOD-123
Dim Min Max
3.60 3.90
2.50...
