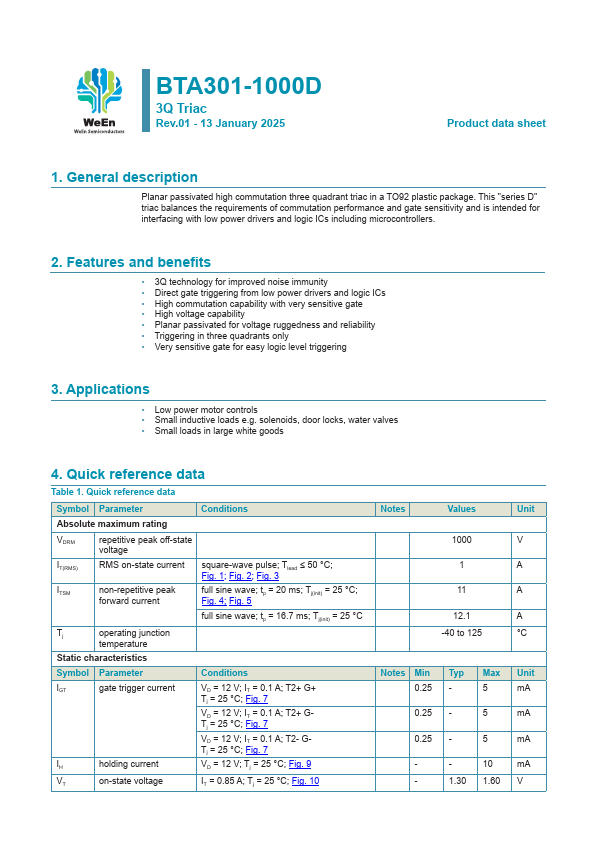

BTA301-1000D
description
Planar passivated high mutation three quadrant triac in a TO92 plastic package. This "series D" triac balances the requirements of mutation performance and gate sensitivity and is intended for interfacing with low power drivers and logic ICs including microcontrollers.
2. Features and benefits
- 3Q technology for improved noise immunity
- Direct gate triggering from low power drivers and logic ICs
- High mutation capability with very sensitive gate
- High voltage capability
- Planar passivated for voltage ruggedness and reliability
- Triggering in three quadrants only
- Very sensitive gate for easy logic level triggering
3. Applications
- Low power motor controls
- Small inductive loads e.g. solenoids, door locks, water valves
- Small loads in large white goods
4. Quick reference data
Table 1. Quick reference data
Symbol Parameter Absolute maximum rating
Conditions
VDRM repetitive peak off-state voltage
IT(RMS)
RMS on-state current square-wave pulse; Tlead ≤ 50...
