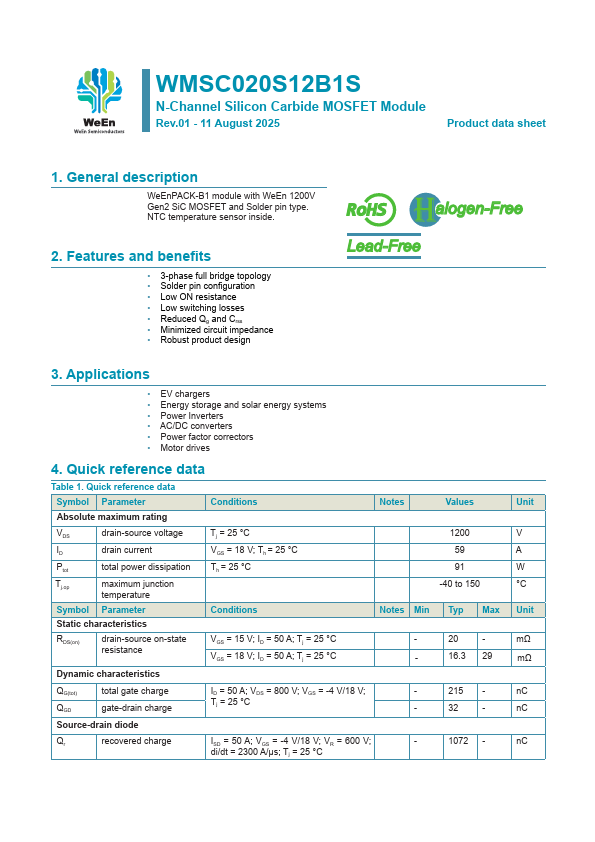

WMSC020S12B1S
description
We En PACK-B1 module with We En 1200V Gen2 Si C MOSFET and Solder pin type. NTC temperature sensor inside.
2. Features and benefits
- 3-phase full bridge topology
- Solder pin configuration
- Low ON resistance
- Low switching losses
- Reduced Qg and Crss
- Minimized circuit impedance
- Robust product design h Ro HS alogen-Free
Lead-Free
3. Applications
- EV chargers
- Energy storage and solar energy systems
- Power Inverters
- AC/DC converters
- Power factor correctors
- Motor drives
4. Quick reference data
Table 1. Quick reference data Symbol Parameter
Conditions
Notes
Values
Absolute maximum rating
VDS drain-source voltage
Tj = 25 °C
ID drain current
VGS = 18 V; Th = 25 °C
Ptot total power dissipation Th = 25 °C
Tj.op maximum junction temperature
Symbol Parameter
Static characteristics
RDS(on) drain-source on-state resistance
Conditions
VGS = 15 V; ID = 50 A; Tj = 25 °C VGS = 18 V; ID = 50 A; Tj = 25 °C
-40 to 150 Notes Min Typ Max
-...
