WT78L09G - Positive Voltage Regulator

Download the WT78L09G datasheet PDF. This datasheet also covers the WT78L05 variant, as both devices belong to the same positive voltage regulator family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Maximum Output current IO: 0.1 A.
  • Output voltage VO: 5V~18V.
  • Continuous total dissipation: PD: 0.625 W (Ta = 25˚C ) Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WT78L05-WeitronTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number WT78L09G
Manufacturer Weitron Technology
File Size 825.50 KB
Description Positive Voltage Regulator
Datasheet download datasheet WT78L09G Datasheet

Full PDF Text Transcription for WT78L09G (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for WT78L09G. For precise diagrams, and layout, please refer to the original PDF.

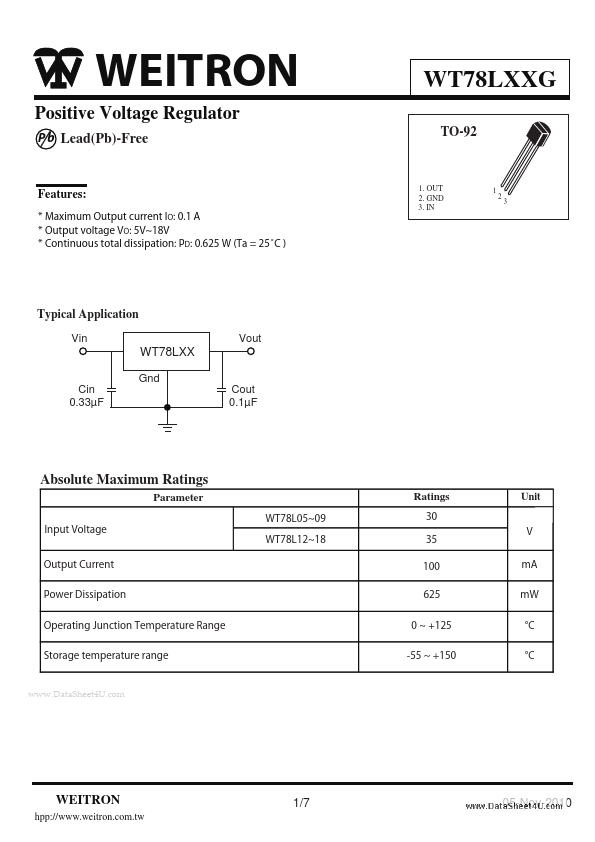

WEITRON Positive Voltage Regulator P b Lead(Pb)-Free Features: * Maximum Output current IO: 0.1 A * Output voltage VO: 5V~18V * Continuous total dissipation: PD: 0.625 W ...

View more extracted text

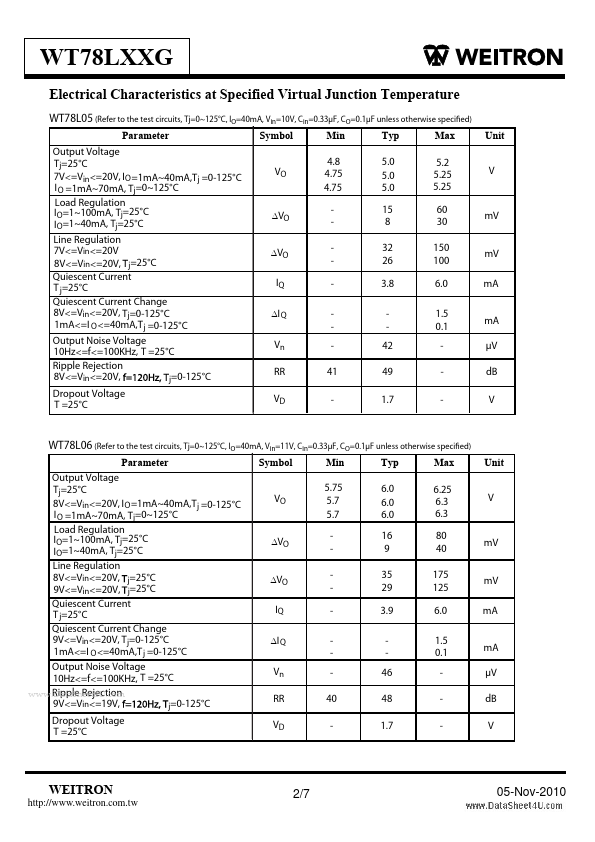

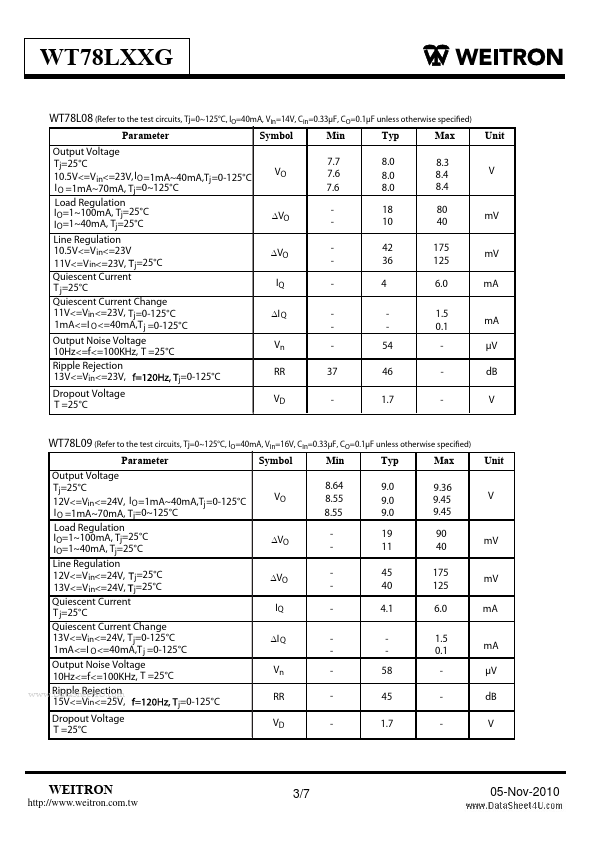

Output voltage VO: 5V~18V * Continuous total dissipation: PD: 0.625 W (Ta = 25˚C ) Typical Application Vin WT78LXX Gnd Cin 0.33µF Vout Cout 0.1µF Absolute Maximum Ratings Parameter Input Voltage Output Current Power Dissipation Operating Junction Temperature Range Storage temperature range www.DataSheet4U.com WT78L05~09 WT78L12~18 WT78LXXG TO-92 1. OUT 1 2. GND 3. IN 2 3 Ratings Unit 30 V 35 100 mA 625 mW 0 ~ +125 °C -55 ~ +150 °C WEITRON 1/7 hpp://www.weitron.com.tw 05-Nov-2010 WT78LXXG Electrical Characteristics at Specified Virtual Junction Temperature WT78L05 (Refer to the test circuits, Tj=0~125°C, IO=40mA, Vin=10V, C
