WT6124 - digital controlled monitor microcontroller

Download the WT6124 datasheet PDF. This datasheet also covers the WT6132 variant, as both devices belong to the same digital controlled monitor microcontroller family and are provided as variant models within a single manufacturer datasheet.

General Description

The WT6132/WT6124/WT6116 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface.

Key Features

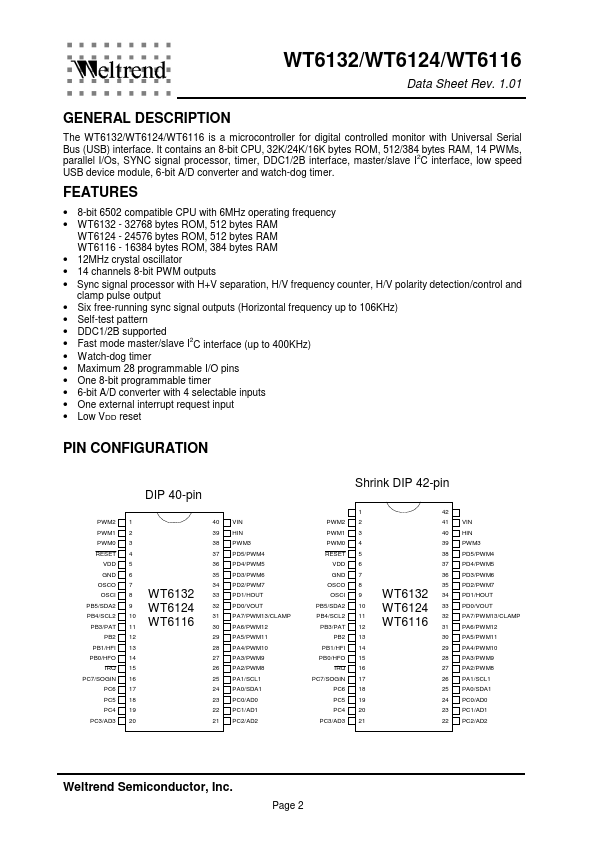

  • 8-bit 6502 compatible CPU with 6MHz operating frequency.
  • WT6132 - 32768 bytes ROM, 512 bytes RAM WT6124 - 24576 bytes ROM, 512 bytes RAM WT6116 - 16384 bytes ROM, 384 bytes RAM.
  • 12MHz crystal oscillator.
  • 14 channels 8-bit PWM outputs.
  • Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and clamp pulse output.
  • Six free-running sync signal outputs (Horizontal frequency up to 106KHz).
  • Self-t.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WT6132-Weltrend.pdf) that lists specifications for multiple related part numbers.

Other Datasheets by Weltrend Semiconductor

Part Number Description
WT6116 digital controlled monitor microcontroller
WT6132 digital controlled monitor microcontroller
WT6148 Digital Monitor Controller
WT6160 Digital Monitor Controller
WT61P4 Embedded Micro Controller
WT61P6 Embedded Micro-Controller
WT61P8 Flat Panel Display Control Sub-MCU
WT6014 Digital Monitor Controller
WT6016 Digital Monitor Controller
WT6018 Digital Monitor Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

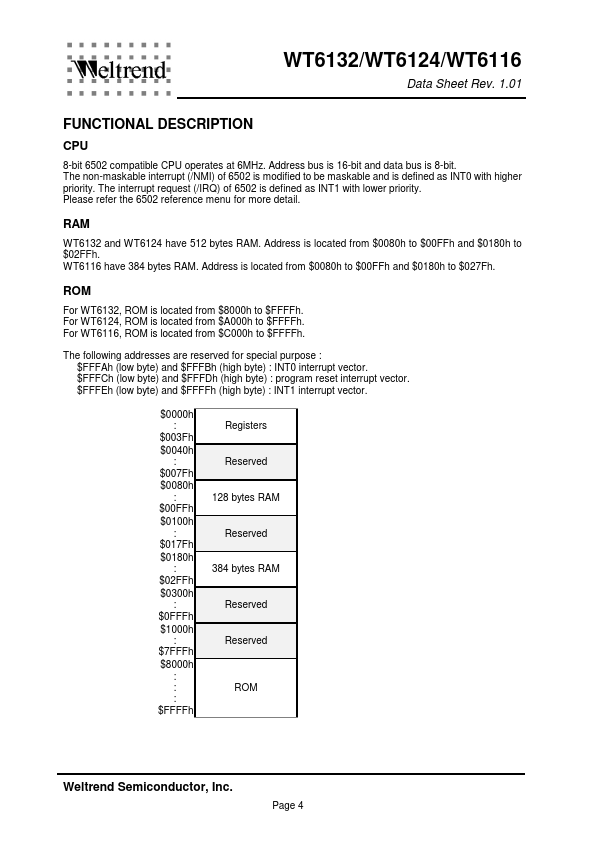

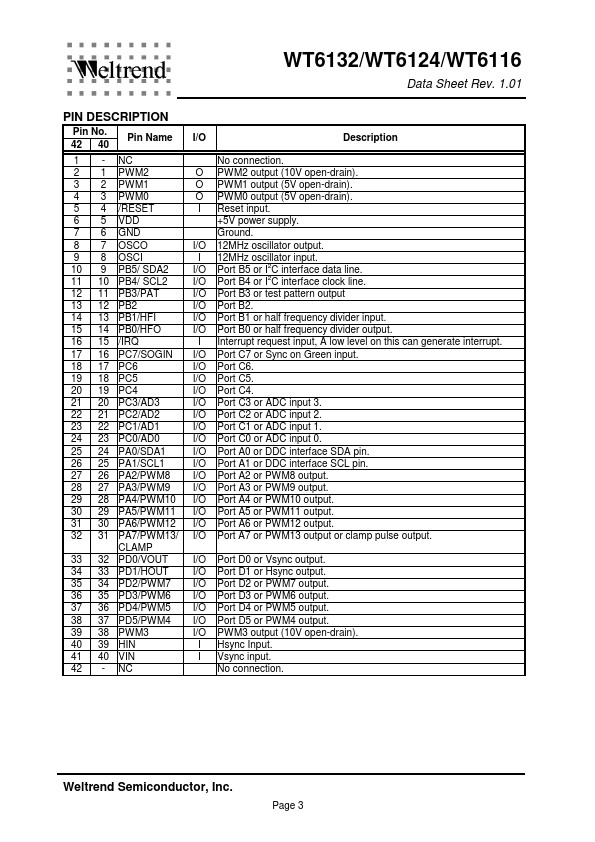

WT6132/WT6124/WT6116 Data Sheet Rev. 1.01 GENERAL DESCRIPTION The WT6132/WT6124/WT6116 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface. It contains an 8-bit CPU, 32K/24K/16K bytes ROM, 512/384 bytes RAM, 14 PWMs, parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I2C interface, low speed USB device module, 6-bit A/D converter and watch-dog timer.
