W567S260
Description

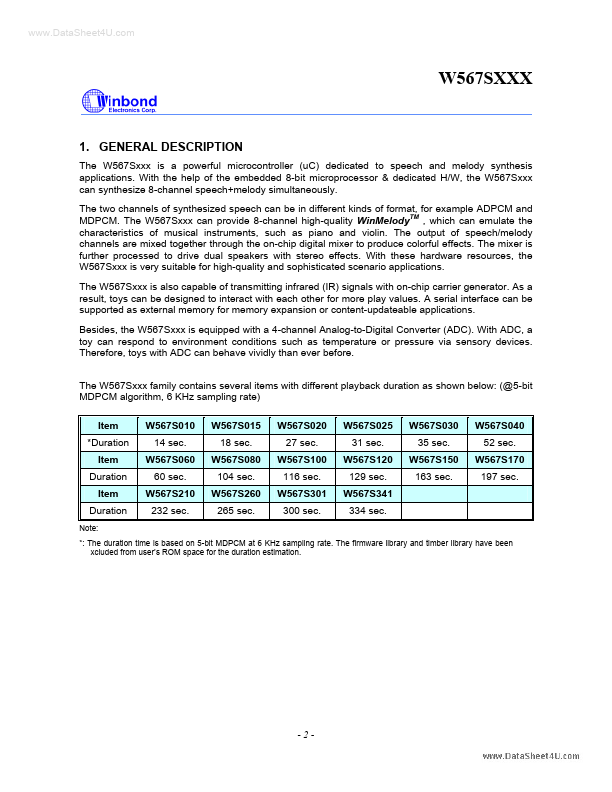

The W567Sxxx is a powerful microcontroller (uC) dedicated to speech and melody synthesis applications.
Key Features
- Wide range of operating voltage: - 8 MHz @ 3.6 volt ~ 5.5 volt - 4 MHz @ 2.4 volt ~ 5.5 volt
- Power management: - 4 ~ 8 MHz system clocks, with Ring type - Stop mode for stopping all IC operations
- Provides up to 8 inputs and 24 I/O pins
- Current-type Digital-to-Analog Converter (DAC)
- 8-bit resolution with programmable output current - 2 speaker outputs for stereo applications
- F/W speech synthesis with multiple format support: ADPCM/MDPCM/PCM
- 2 speech synthesis1 channels at programmable sample rate
- 8 melody channels that can emulate characteristics of musical instruments
- 8-input/10-bit-resolution Mixer can mix the speech and melody signals flexibly
- Dynamic control of the channel assignment to the dual speaker output for stereo effects
