25Q128FVTQ Description

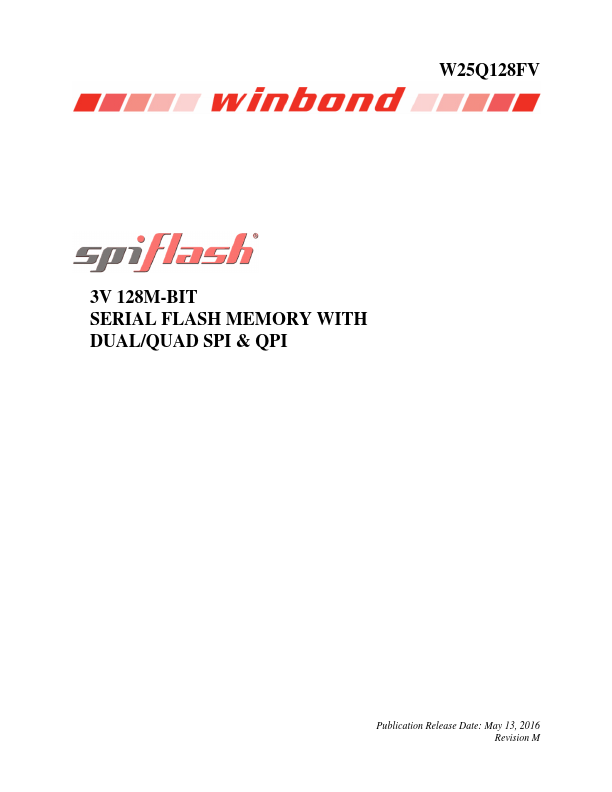

W25Q128FV 3V 128M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI Publication Release Date: May 13, 2016 Revision M W25Q128FV 1. GENERAL DESCRIPTIONS The W25Q128FV (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
25Q128FVTQ Key Features
- New Family of SpiFlash Memories
- W25Q128FV: 128M-bit / 16M-byte

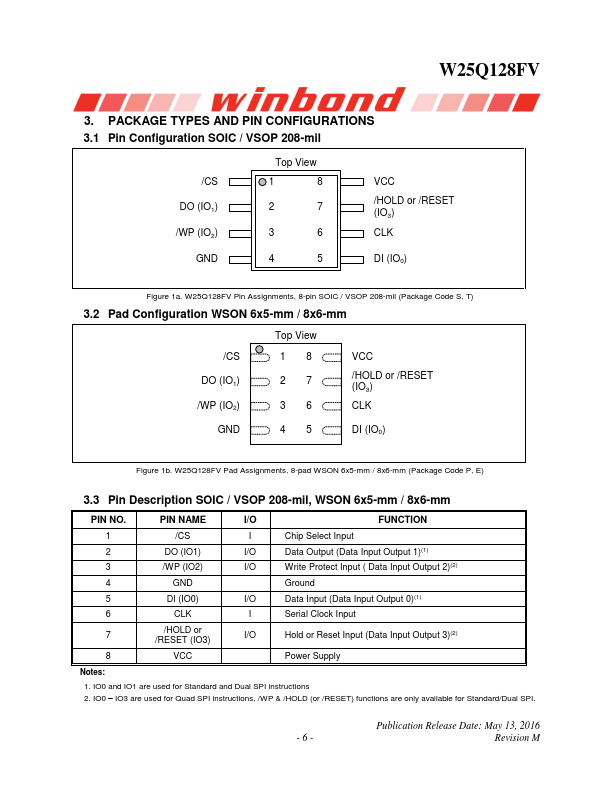

- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- QPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset
- Highest Performance Serial Flash
- 104MHz Single, Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
