Winbond Electronics Corporation 25Q128JVCM
3V 128M-BIT SERIAL FLASH MEMORY
| Part No. | 25Q128JVCM |
|---|---|
| Datasheet | 25Q128JVCM Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 3V 128M-BIT SERIAL FLASH MEMORY |
| Buy | Stock & Price |

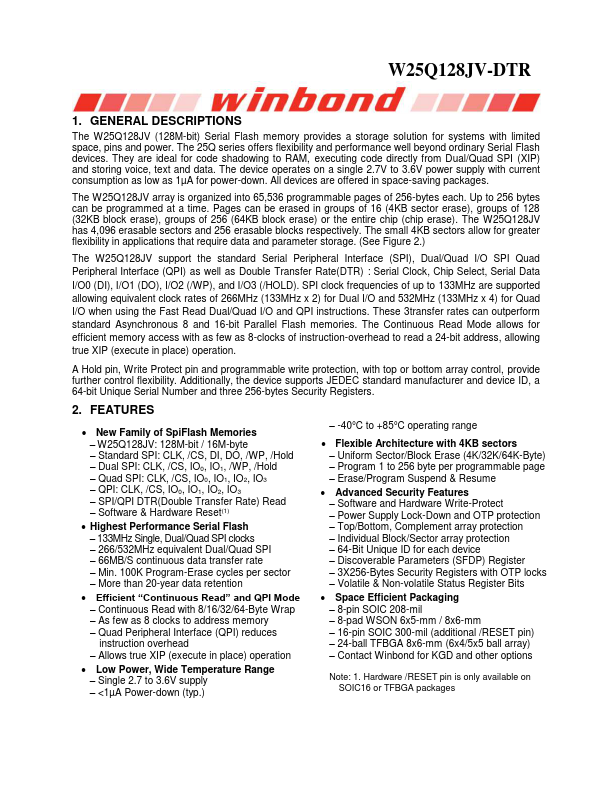

FEATURES
● New Family of SpiFlash Memories – W25Q128JV: 128M-bit / 16M-byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – QPI: CLK, /CS, IO0, IO1, IO2, IO3 – SPI/QPI DTR(Double Transfer Rate) Read – Software & Hardware Reset(1)● Highest Performance Serial Flash – 133MHz Single, Dual/Quad SPI clocks – 266/532MHz equivalent Dual/Quad SPI – 66MB/S continuous data transfer rate – Min. 100K Program-Erase cycles per sector – More than 20-year data retention
● Efficient “Continuous Read” and QPI Mode – Continuous Read with 8/16/32/64-Byte Wrap – As few as 8 clocks to address memory – Quad Peripheral Interface (QPI) reduces instruction overhead – Allows true XIP (execute in place) operation
● Low Power, Wide Temperature Range – Single 2.7 to 3.6V supply – <1µA Power-down (typ.) – -40°C to +85°C operating range
● Flexible Architecture with 4KB sectors – Uniform Sector/Block Erase (4K/32K/64K-Byte) – Program 1...
