25Q256FVEQ

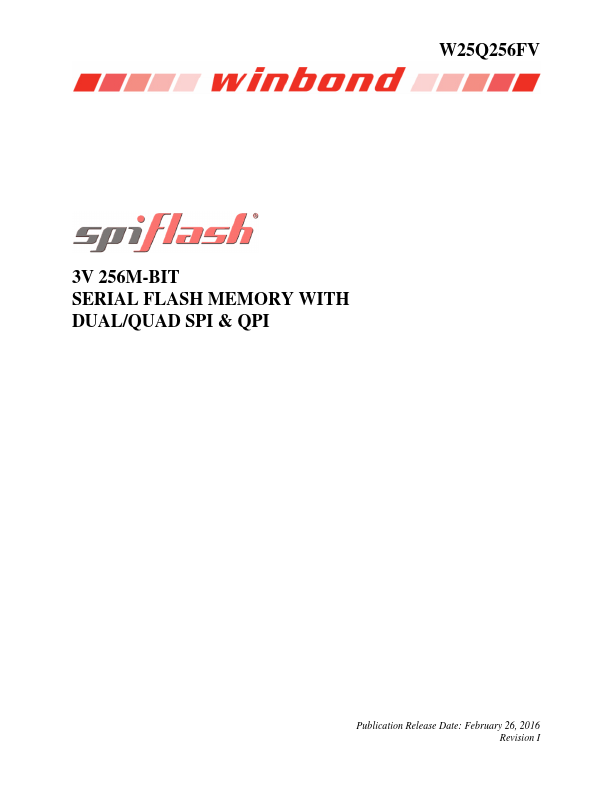

25Q256FVEQ is 3V 256M-BIT SERIAL FLASH MEMORY manufactured by Winbond.
- Part of the 25Q256FVFG comparator family.
- Part of the 25Q256FVFG comparator family.

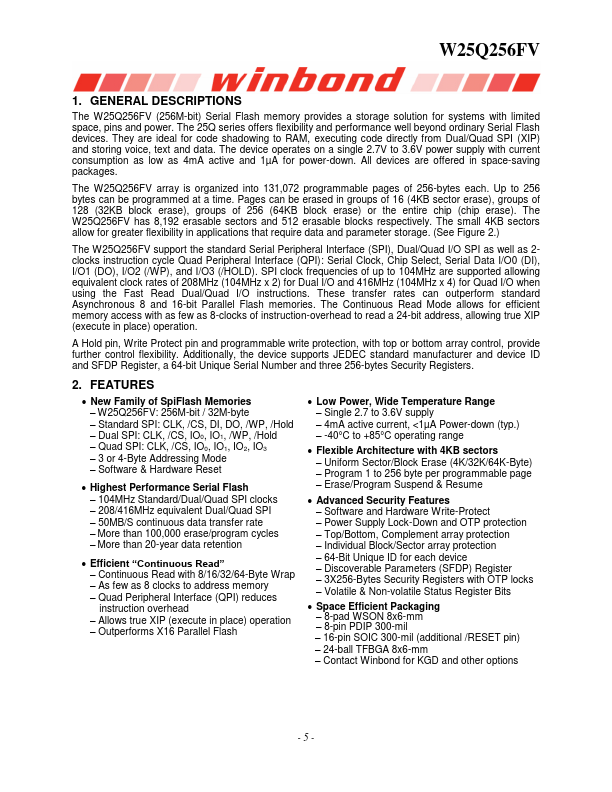

FEATURES
- New Family of Spi Flash Memories
- W25Q256FV: 256M-bit / 32M-byte

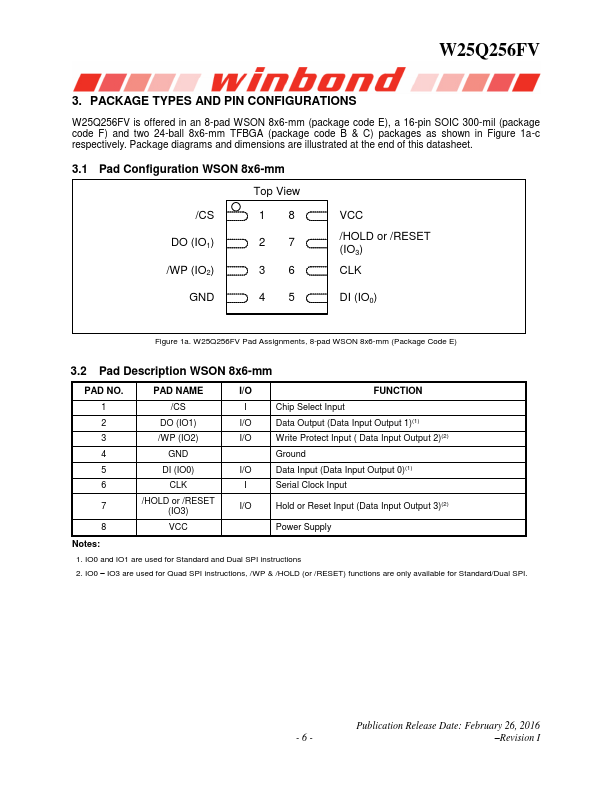

- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- 3 or 4-Byte Addressing Mode
- Software & Hardware Reset
- Highest Performance Serial Flash
- 104MHz Standard/Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
- 50MB/S continuous data transfer rate
- More than 100,000 erase/program cycles
- More than 20-year data retention
- Efficient “Continuous Read”
- Continuous Read with 8/16/32/64-Byte Wrap
- As few as 8 clocks to address memory
- Quad Peripheral Interface (QPI) reduces instruction overhead
- Allows true XIP (execute in place) operation
- Outperforms X16 Parallel Flash
- Low Power, Wide Temperature...
