25Q32VSIG Description

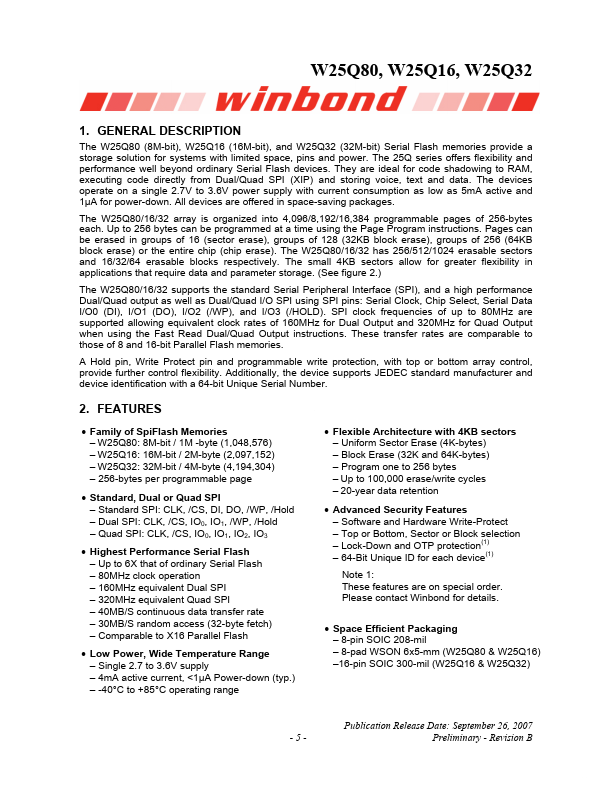

The W25Q80 (8M-bit), W25Q16 (16M-bit), and W25Q32 (32M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
25Q32VSIG Key Features
- Family of SpiFlash Memories
- W25Q80: 8M-bit / 1M -byte (1,048,576)
- W25Q16: 16M-bit / 2M-byte (2,097,152)
- W25Q32: 32M-bit / 4M-byte (4,194,304)
- 256-bytes per programmable page
- Standard, Dual or Quad SPI

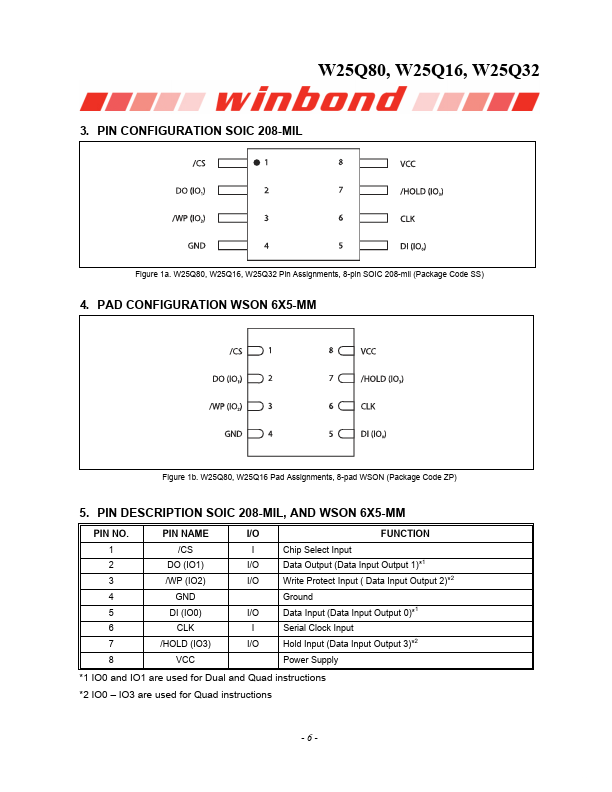

- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Highest Performance Serial Flash
