25Q64JVJQ Overview

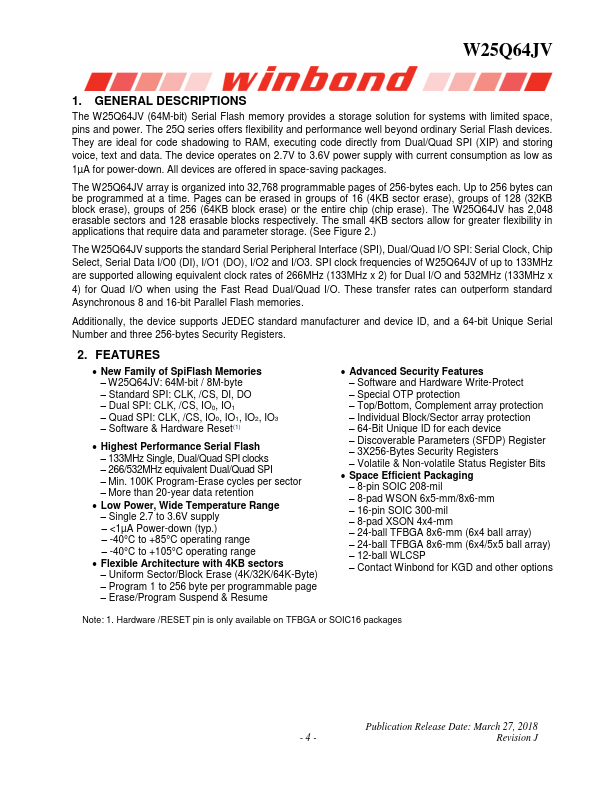

W25Q64JV 3V 64M-BIT SERIAL FLASH MEMORY WITH DUAL, QUAD SPI Publication Release Date: March 27, 2018 Revision J W25Q64JV 1. GENERAL DESCRIPTIONS The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
25Q64JVJQ Key Features
- New Family of SpiFlash Memories
- W25Q64JV: 64M-bit / 8M-byte
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset(1)
- Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI
- Min. 100K Program-Erase cycles per sector
