25Q80DLVIG Overview
The W25Q80DV/DL (8M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
25Q80DLVIG Key Features
- Family of SpiFlash Memories
- W25Q80DV/DL: 8M-bit/1M-byte (1,048,576)
- 256-byte per programmable page

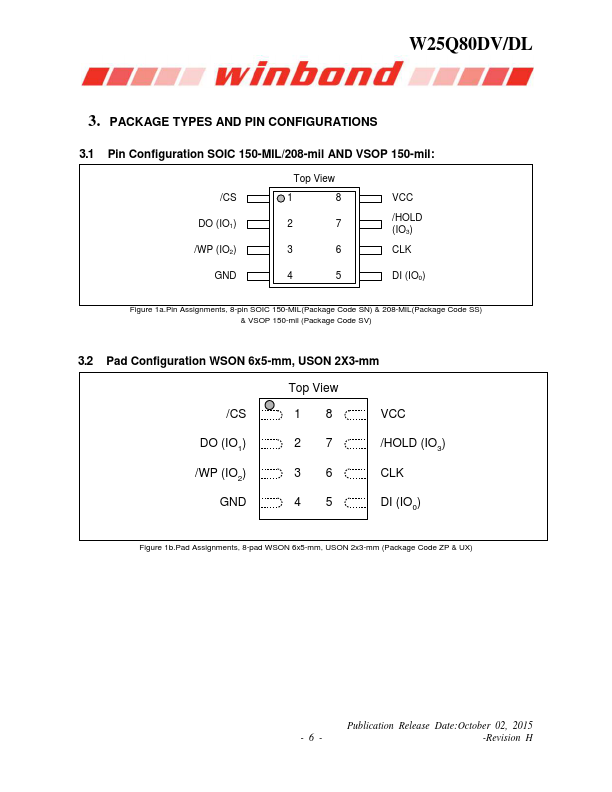

- Standard SPI: CLK,/CS,DI,DO,/WP,/Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Uniform 4KB Sectors, 32KB & 64KB Blocks
- Highest Performance Serial Flash
- W25Q80DV 104MHz Dual/Quad SPI clocks 208/416MHz equivalent Dual/Quad SPI 50MB/S continuous data transfer rate
- W25Q80DL 80MHz Dual/Quad SPI clocks 160/320MHz equivalent Dual/Quad SPI 40MB/S continuous data transfer rate
