25Q80EWSIG Overview

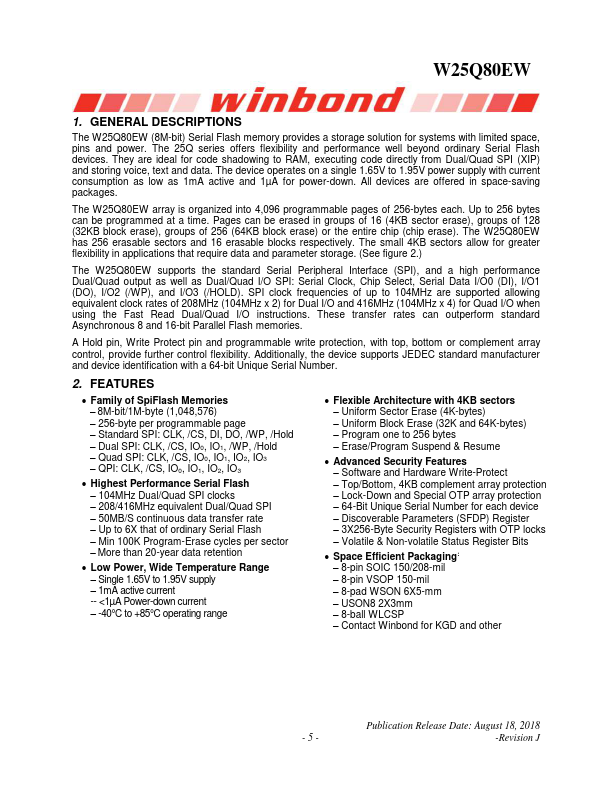

W25Q80EW 1.8V 8M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI Publication Release Date: August 18, 2018 -1- inary -Revision J W25Q80EW 1. GENERAL DESCRIPTIONS The W25Q80EW (8M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
25Q80EWSIG Key Features
- Family of SpiFlash Memories
- 8M-bit/1M-byte (1,048,576)
- 256-byte per programmable page
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- QPI: CLK, /CS, IO0, IO1, IO2, IO3
- Highest Performance Serial Flash
- 104MHz Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
