25X16BVAIG
Description

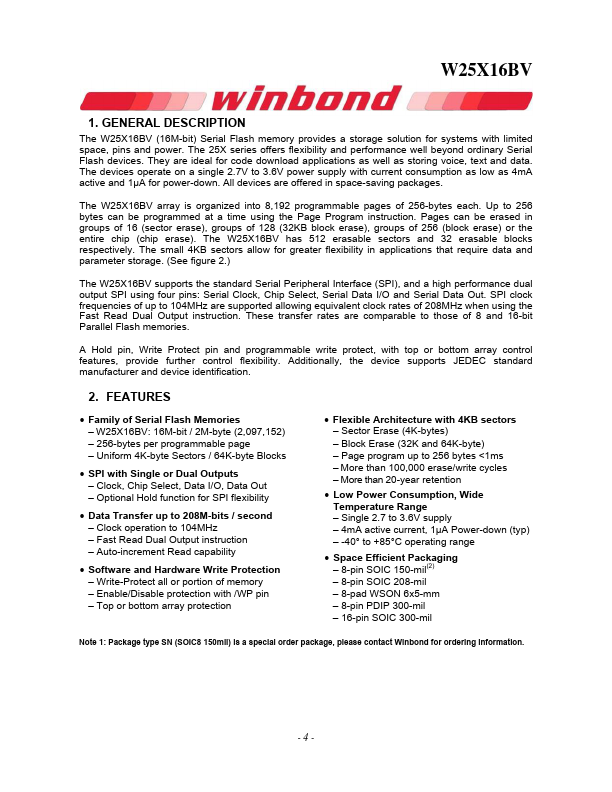

The W25X16BV (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices.
Key Features
- SPI with Single or Dual Outputs – Clock, Chip Select, Data I/O, Data Out – Optional Hold function for SPI flexibility
- Data Transfer up to 208M-bits / second – Clock operation to 104MHz – Fast Read Dual Output instruction – Auto-increment Read capability
