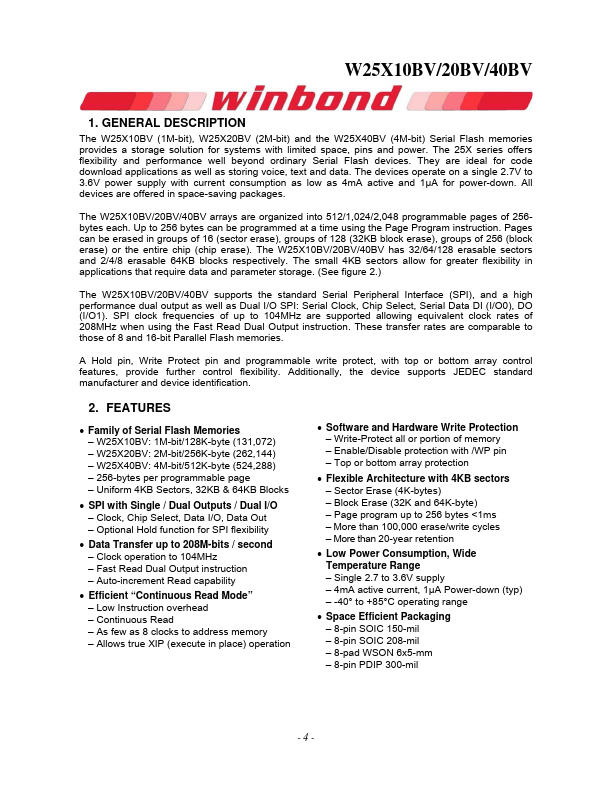

25X40BVSIG Overview
The W25X10BV (1M-bit), W25X20BV (2M-bit) and the W25X40BV (4M-bit) Serial Flash memories provides a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data.
25X40BVSIG Key Features
- Family of Serial Flash Memories
- W25X10BV: 1M-bit/128K-byte (131,072)
- W25X20BV: 2M-bit/256K-byte (262,144)
- W25X40BV: 4M-bit/512K-byte (524,288)
- 256-bytes per programmable page
- Uniform 4KB Sectors, 32KB & 64KB Blocks
- SPI with Single / Dual Outputs / Dual I/O
- Clock, Chip Select, Data I/O, Data Out
- Optional Hold function for SPI flexibility
- Data Transfer up to 208M-bits / second
