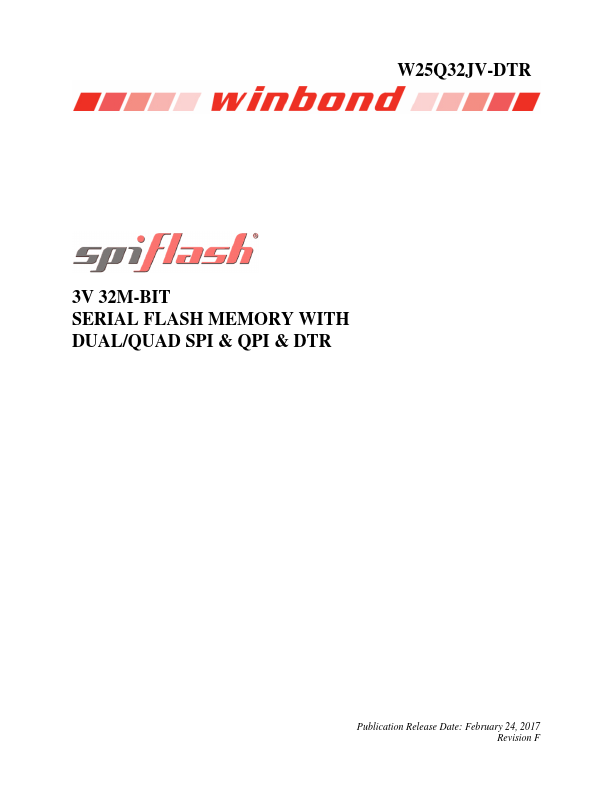

Winbond Electronics Corporation Q32JVXGIM
3V 32M-BIT SERIAL FLASH MEMORY
| Part No. | Q32JVXGIM |
|---|---|
| Datasheet | Q32JVXGIM Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 3V 32M-BIT SERIAL FLASH MEMORY |
| Buy | Stock & Price |

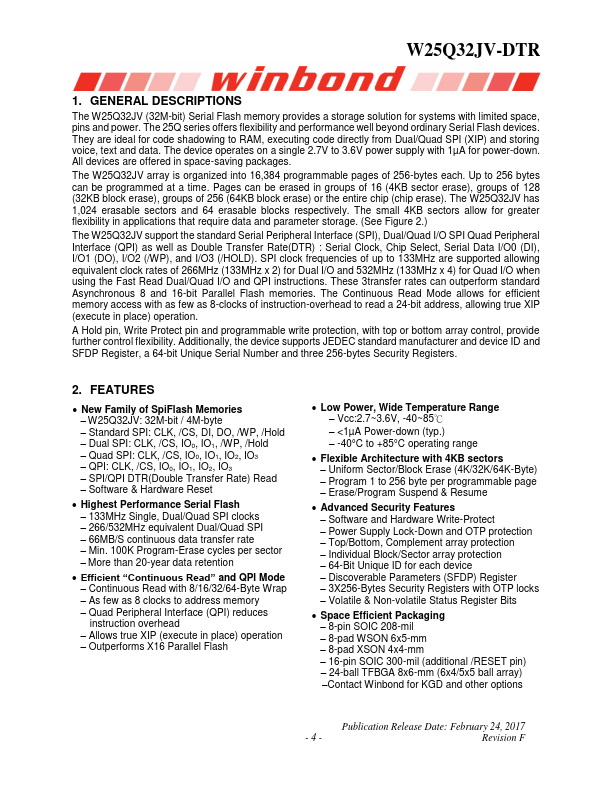

FEATURES
● New Family of SpiFlash Memories – W25Q32JV: 32M-bit / 4M-byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – QPI: CLK, /CS, IO0, IO1, IO2, IO3 – SPI/QPI DTR(Double Transfer Rate) Read – Software & Hardware Reset● Highest Performance Serial Flash – 133MHz Single, Dual/Quad SPI clocks – 266/532MHz equivalent Dual/Quad SPI – 66MB/S continuous data transfer rate – Min. 100K Program-Erase cycles per sector – More than 20-year data retention
● Efficient “Continuous Read” and QPI Mode – Continuous Read with 8/16/32/64-Byte Wrap – As few as 8 clocks to address memory – Quad Peripheral Interface (QPI) reduces instruction overhead – Allows true XIP (execute in place) operation – Outperforms X16 Parallel Flash
● Low Power, Wide Temperature Range – Vcc:2.7~3.6V, -40~85℃ – <1µA Power-down (typ.) – -40°C to +85°C operating range
● Flexible Architecture with 4KB sectors – Uniform Sector/Block Erase (4K/32K...
