W25N01JWTBJG Overview

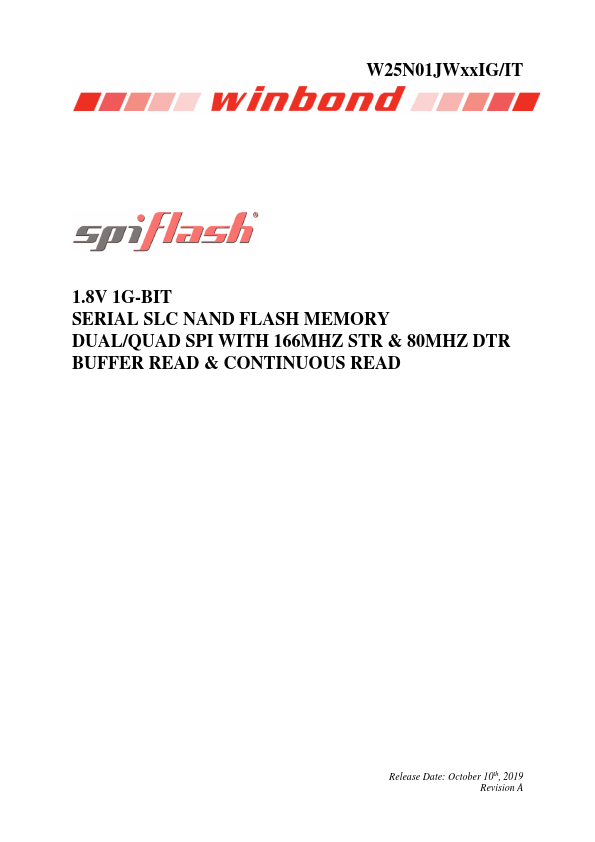

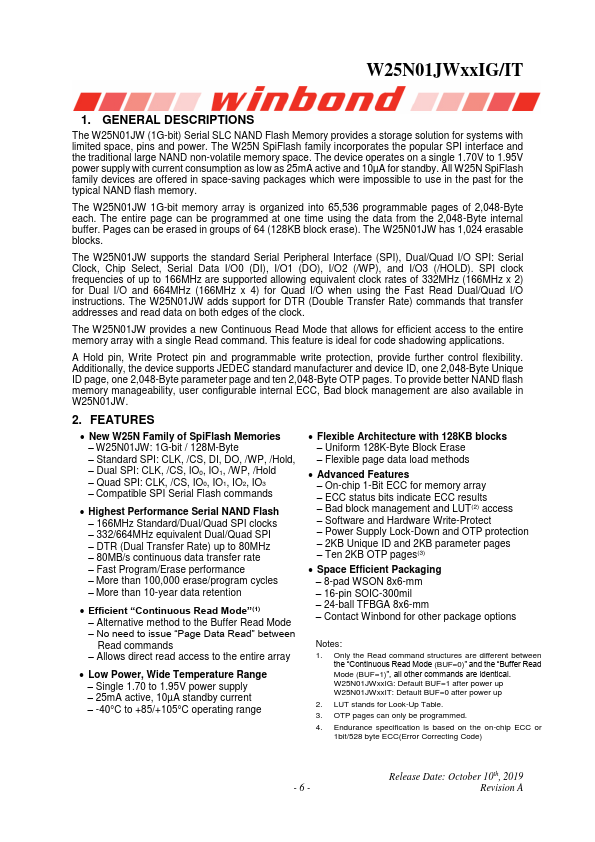

W25N01JWxxIG/IT 1.8V 1G-BIT SERIAL SLC NAND FLASH MEMORY DUAL/QUAD SPI WITH 166MHZ STR & 80MHZ DTR BUFFER READ & CONTINUOUS READ Release Date: October 10th, 2019 Revision A W25N01JWxxIG/IT 1. GENERAL DESCRIPTIONS The W25N01JW (1G-bit) Serial SLC NAND Flash Memory provides a storage solution for systems with limited space, pins and power.
W25N01JWTBJG Key Features
- New W25N Family of SpiFlash Memories
- W25N01JW: 1G-bit / 128M-Byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- patible SPI Serial Flash mands
- Highest Performance Serial NAND Flash
- 166MHz Standard/Dual/Quad SPI clocks
- 332/664MHz equivalent Dual/Quad SPI
- DTR (Dual Transfer Rate) up to 80MHz
