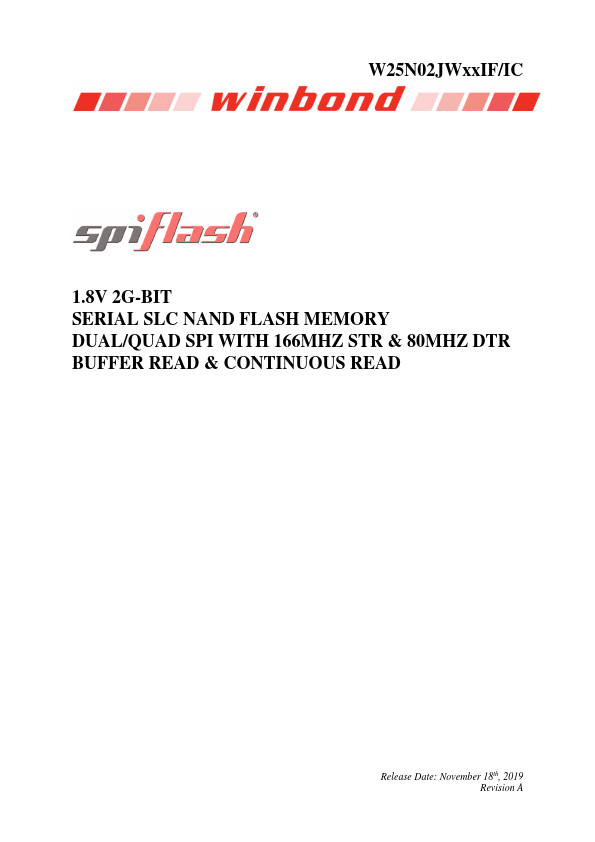

Winbond Electronics Corporation W25N02JWSFIF
The W25N02JW (2G-bit) Serial SLC NAND Flash Memory provides a storage solution for systems with limited space, pins and power. The W25N SpiFlash family incorporates the popular SPI interface and the traditional large NAND non-volatile memory space. The device operates on a single 1.70V to 1.95V power supply with current consumption as low as 25mA active and 10µA for standby.| Part No. | W25N02JWSFIF |
|---|---|
| Datasheet | W25N02JWSFIF Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 1.8V 2G-BIT SERIAL SLC NAND FLASH MEMORY |
| Buy | Stock & Price |
FEATURES

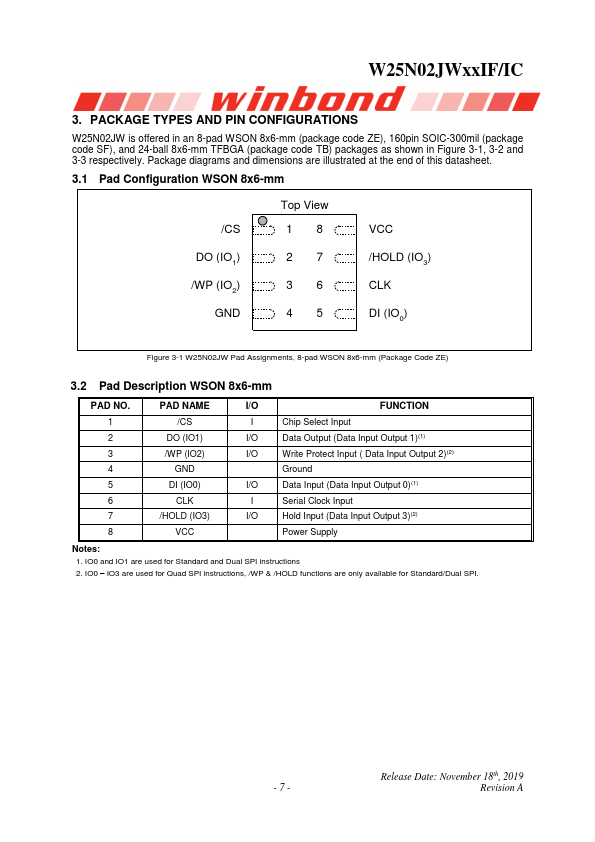

● New W25N Family of SpiFlash Memories – W25N02JW: 2G-bit / 256M-Byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold, – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – Compatible SPI Serial Flash commands● Highest Performance Serial NAND Flash – 166MHz Standard/Dual/Quad SPI clocks – 332/664MHz equivalent Dual/Quad SPI – DTR (Dual Transfer Rate) up to 83MHz – 83MB/s continuous data transfer rate – Fast Program/Erase performance – 100,000 erase/program cycles – 10-year data retention
● Efficient “Continuous Read Mode” (1) – Alternative method to the Buffer Read Mode – No need to issue “Page Data Read” between Read commands – Allows direct read access to the entire array
● Low Power, Wide Temperature Range – Single 1.70 to 1.95V power supply – 25mA active, 20µA standby current – -40°C to +85/+105°C operating range
● Flexible Architecture with 128KB blocks – Uniform 128K-Byte Block Erase – Flexible page data load methods
● Advanced
FEATURES
– On...
