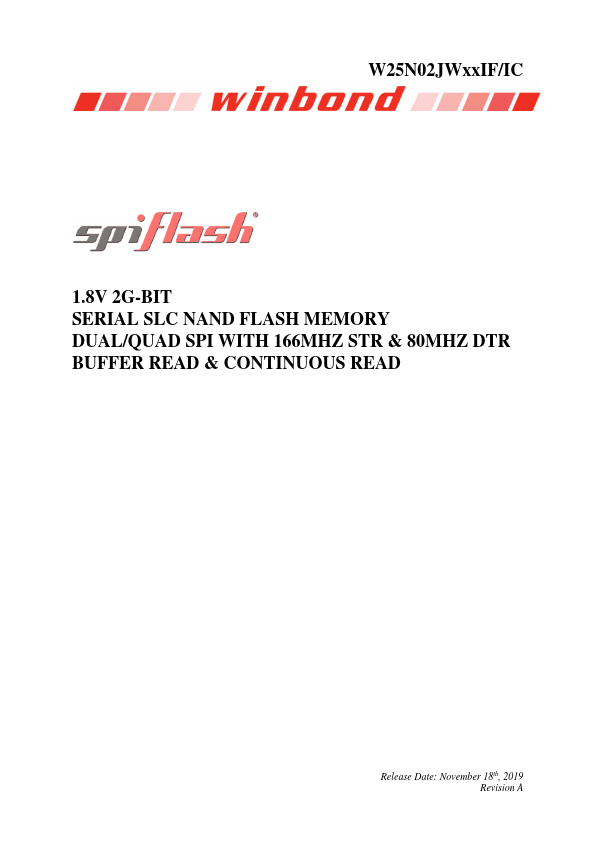

W25N02JWZEJF
W25N02JWZEJF is 1.8V 2G-BIT SERIAL SLC NAND FLASH MEMORY manufactured by Winbond.
- Part of the W25N02JW comparator family.
- Part of the W25N02JW comparator family.
feature is ideal for code shadowing applications.
A Hold pin, Write Protect pin and programmable write protection, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device ID, one 2,048-Byte Unique ID page, one 2,048-Byte parameter page and ten 2,048-Byte OTP pages. To provide better NAND flash memory manageability, user configurable internal ECC, Bad block management are also available in W25N02JW.
2. FEATURES
- New W25N Family of Spi Flash Memories
- W25N02JW: 2G-bit / 256M-Byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold,
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- patible SPI Serial Flash mands
- Highest Performance Serial NAND Flash
- 166MHz Standard/Dual/Quad SPI clocks
- 332/664MHz equivalent Dual/Quad SPI
- DTR (Dual Transfer Rate) up to 80MHz
- 80MB/s continuous data transfer rate
- Fast Program/Erase performance
- More than 100,000 erase/program cycles
- More than 10-year data retention
- Efficient “Continuous Read Mode”(1)
- Alternative method to the Buffer Read Mode
- No need to issue “Page Data Read” between Read mands
- Allows direct read access to the entire array
- Low Power, Wide Temperature Range
- Single 1.70 to 1.95V power supply
- 25m A active, 20µA...
