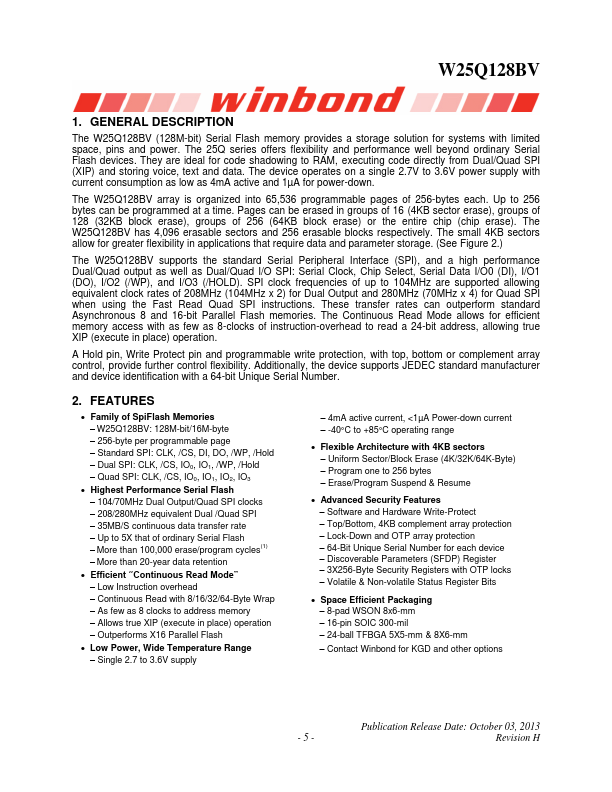

W25Q128BV 3V 128M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI Publication Release Date: October 03, 2013 -1- Revision H W25Q128BV 1. GENERAL DESCRIPTION The W25Q128BV (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 4mA active and 1µA for power-down. The W25Q128BV array is organized into 65,536 programmable pages of...
