W25Q128FWBIG - 1.8V 128M-BIT SERIAL FLASH MEMORY

This page provides the datasheet information for the W25Q128FWBIG, a member of the W25Q128FW 1.8V 128M-BIT SERIAL FLASH MEMORY family.

Datasheet Summary

Description

5 2.

Features

  • 5 3.

📥 Download Datasheet

Datasheet preview – W25Q128FWBIG

Datasheet Details

Part number W25Q128FWBIG
Manufacturer Winbond
File Size 2.76 MB
Description 1.8V 128M-BIT SERIAL FLASH MEMORY
Datasheet download datasheet W25Q128FWBIG Datasheet
Additional preview pages of the W25Q128FWBIG datasheet.

📁 Similar Datasheet

  • W2512 - Precision Thin Film Chip Resistors (TT electronics)
  • W255 - 200-MHz 24-Output Buffer (Cypress Semiconductor)
  • W256 - 12 Output Buffer for 2 DDR and 3 SRAM DIMMS (Cypress Semiconductor)
  • W25NM60N - STW25NM60N (STMicroelectronics)
  • W25X16 - Serial Flash Memory (Winbond Electronics)
  • W25X16A - Serial Flash Memory (Winbond Electronics)
  • W25X32 - Serial Flash Memory (Winbond Electronics)
  • W25X64 - Serial Flash Memory (Winbond Electronics)
Other Datasheets by Winbond

Full PDF Text Transcription

Click to expand full text

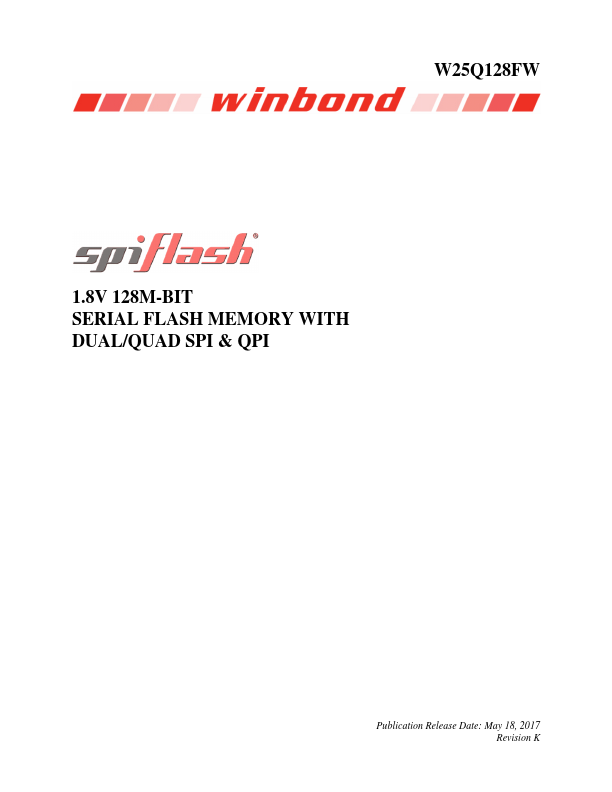

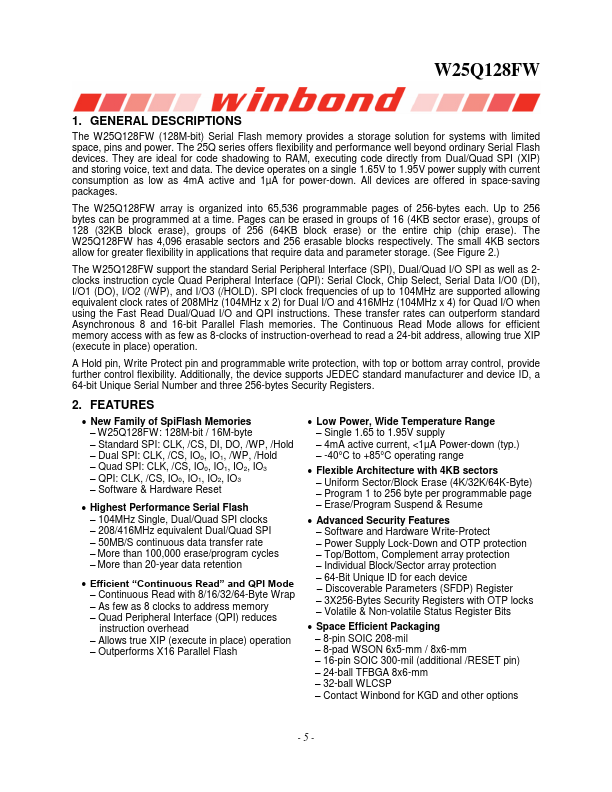

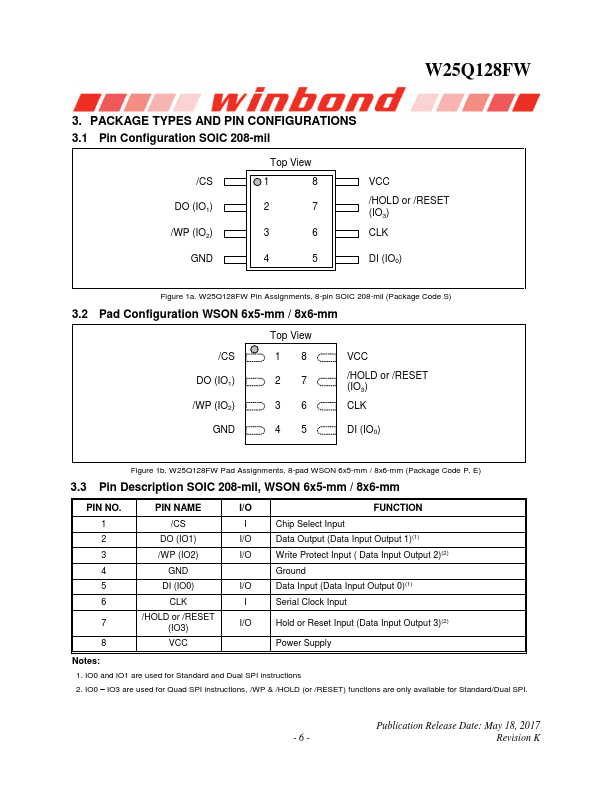

W25Q128FW 1.8V 128M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI Publication Release Date: May 18, 2017 Revision K W25Q128FW Table of Contents 1. GENERAL DESCRIPTIONS............................................................................................................. 5 2. FEATURES ....................................................................................................................................... 5 3. PACKAGE TYPES AND PIN CONFIGURATIONS........................................................................... 6 3.1 Pin Configuration SOIC 208-mil ........................................................................................... 6 3.2 Pad Configuration WSON 6x5-mm / 8x6-mm ...................................................................... 6 3.
