W25Q256JWFIM - 1.8V 256M-BIT SERIAL FLASH MEMORY

This page provides the datasheet information for the W25Q256JWFIM, a member of the W25Q256JW 1.8V 256M-BIT SERIAL FLASH MEMORY family.

Datasheet Summary

Description

5 2.

Features

  • 5 3.

📥 Download Datasheet

Datasheet preview – W25Q256JWFIM

Datasheet Details

Part number W25Q256JWFIM
Manufacturer Winbond
File Size 1.68 MB
Description 1.8V 256M-BIT SERIAL FLASH MEMORY
Datasheet download datasheet W25Q256JWFIM Datasheet
Additional preview pages of the W25Q256JWFIM datasheet.

📁 Similar Datasheet

  • W2512 - Precision Thin Film Chip Resistors (TT electronics)
  • W255 - 200-MHz 24-Output Buffer (Cypress Semiconductor)
  • W256 - 12 Output Buffer for 2 DDR and 3 SRAM DIMMS (Cypress Semiconductor)
  • W25NM60N - STW25NM60N (STMicroelectronics)
  • W25X16 - Serial Flash Memory (Winbond Electronics)
  • W25X16A - Serial Flash Memory (Winbond Electronics)
  • W25X32 - Serial Flash Memory (Winbond Electronics)
  • W25X64 - Serial Flash Memory (Winbond Electronics)
Other Datasheets by Winbond

Full PDF Text Transcription

Click to expand full text

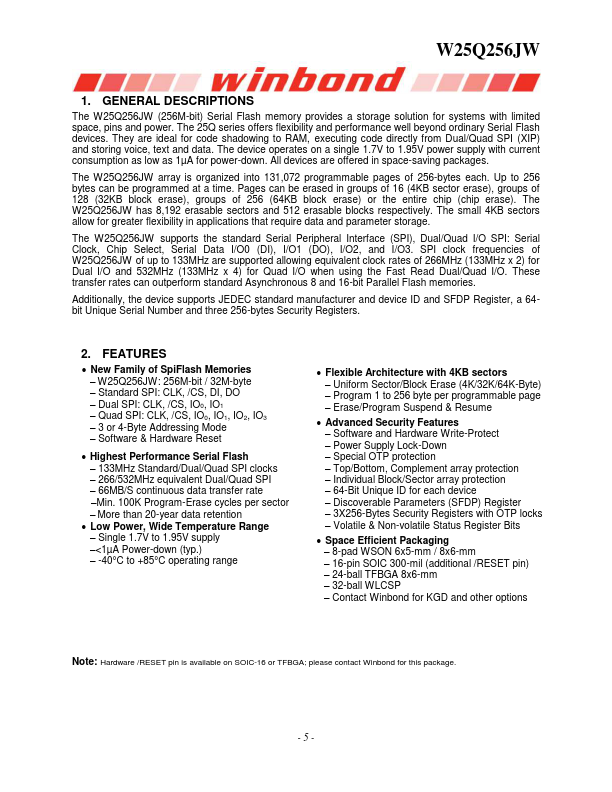

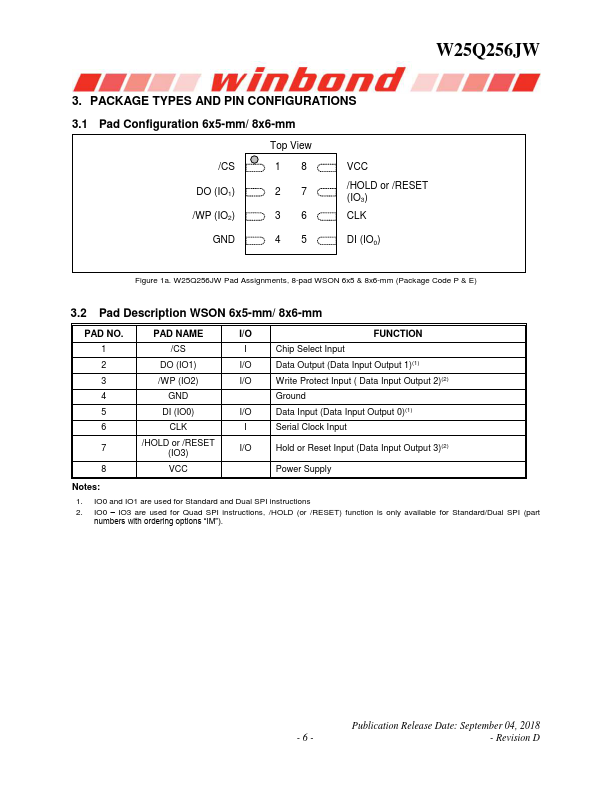

W25Q256JW 1.8V 256M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI Publication Release Date: December 08. 2017 - Revision B W25Q256JW Table of Contents 1. GENERAL DESCRIPTIONS............................................................................................................. 5 2. FEATURES ....................................................................................................................................... 5 3. PACKAGE TYPES AND PIN CONFIGURATIONS........................................................................... 6 3.1 Pad Configuration 6x5-mm/ 8x6-mm.................................................................................... 6 3.2 Pad Description WSON 6x5-mm/ 8x6-mm .......................................................................... 6 3.
