W25Q32FV Overview

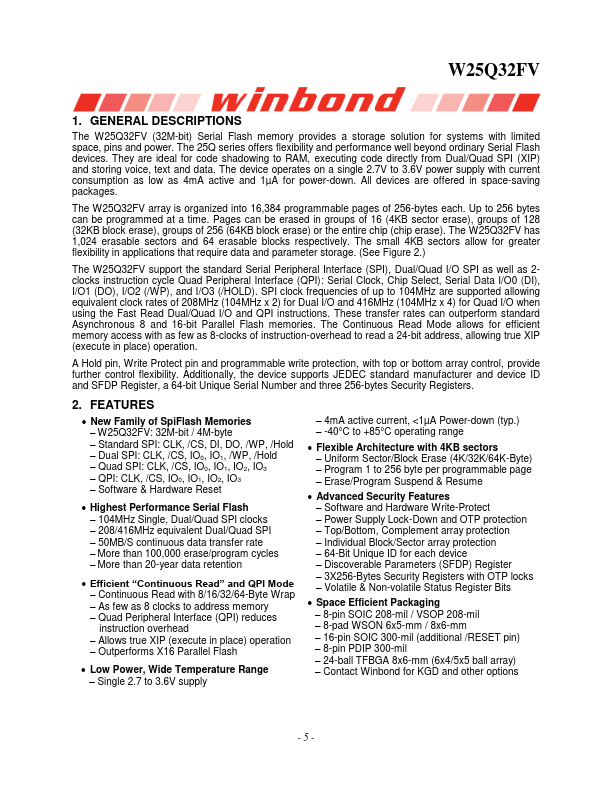

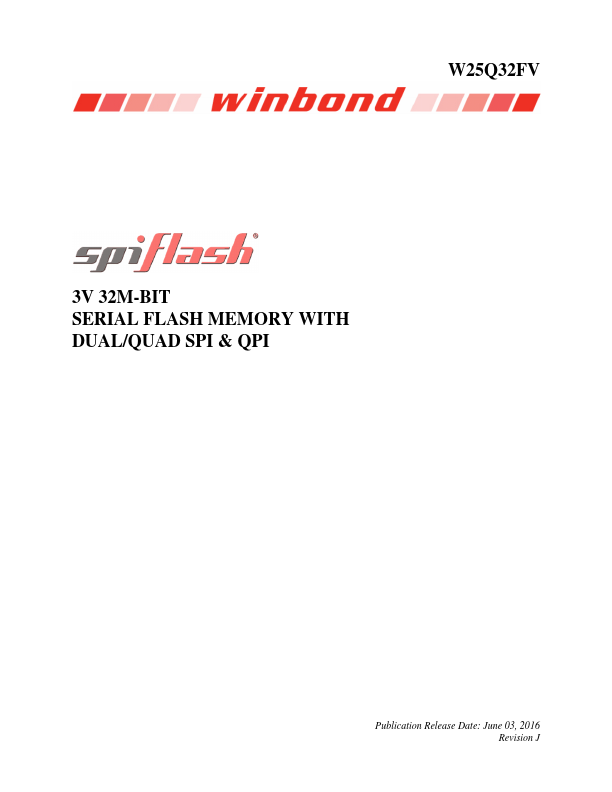

W25Q32FV 3V 32M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI Publication Release Date: June 03, 2016 Revision J W25Q32FV 1. GENERAL DESCRIPTIONS The W25Q32FV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
W25Q32FV Key Features
- New Family of SpiFlash Memories
- W25Q32FV: 32M-bit / 4M-byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- QPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset
- Highest Performance Serial Flash
- 104MHz Single, Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
