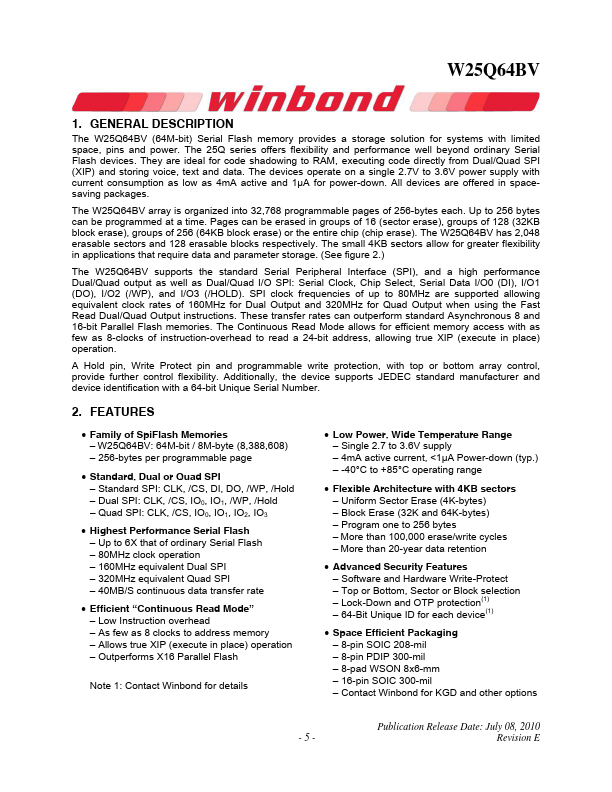

W25Q64BVSFIG Description
The W25Q64BV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
W25Q64BVSFIG Key Features
- Family of SpiFlash Memories
- W25Q64BV: 64M-bit / 8M-byte (8,388,608)
- 256-bytes per programmable page
- Standard, Dual or Quad SPI
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Highest Performance Serial Flash
- Up to 6X that of ordinary Serial Flash
- 80MHz clock operation
