W25Q64CVDAIG Overview

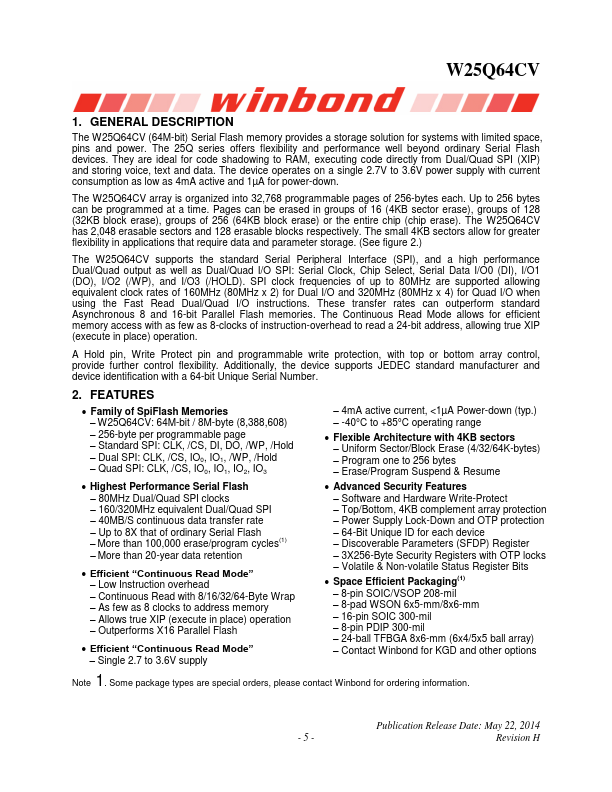

The W25Q64CV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
W25Q64CVDAIG Key Features
- Family of SpiFlash Memories
- W25Q64CV: 64M-bit / 8M-byte (8,388,608)
- 256-byte per programmable page
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Highest Performance Serial Flash
- 80MHz Dual/Quad SPI clocks
- 160/320MHz equivalent Dual/Quad SPI
- 40MB/S continuous data transfer rate
