W25Q64JVSSIQ
W25Q64JVSSIQ is 3V 64M-BIT SERIAL FLASH MEMORY manufactured by Winbond.
- Part of the W25Q64JV comparator family.
- Part of the W25Q64JV comparator family.

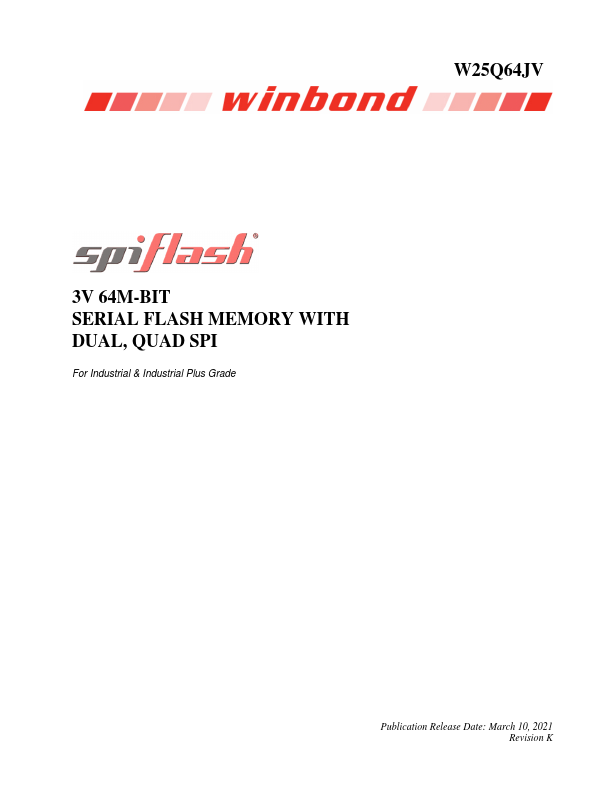

W25Q64JV
3V 64M-BIT SERIAL FLASH MEMORY WITH DUAL, QUAD SPI
For Industrial & Industrial Plus Grade
Publication Release Date: March 10, 2021 Revision K
W25Q64JV

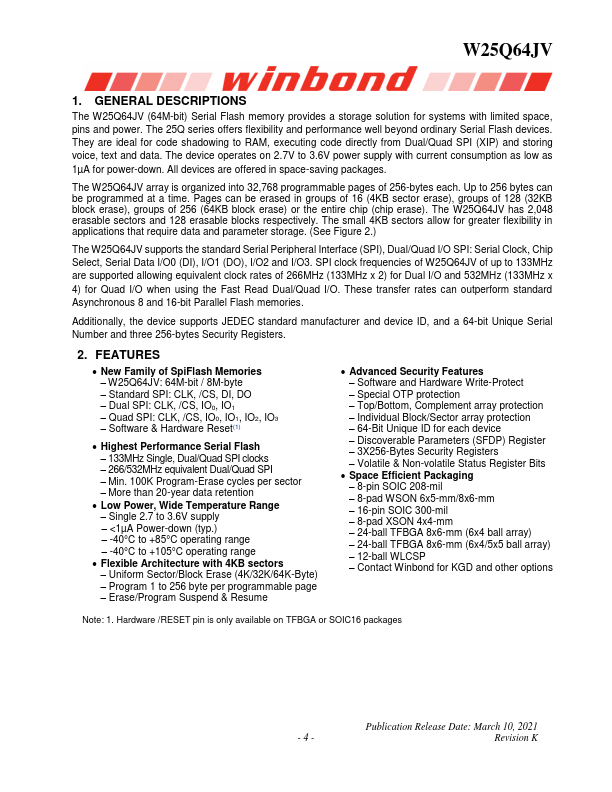

1. GENERAL DESCRIPTIONS
The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. All devices are offered in space-saving packages.
The W25Q64JV array...
