W25Q80BVSNIG Datasheet | Winbond

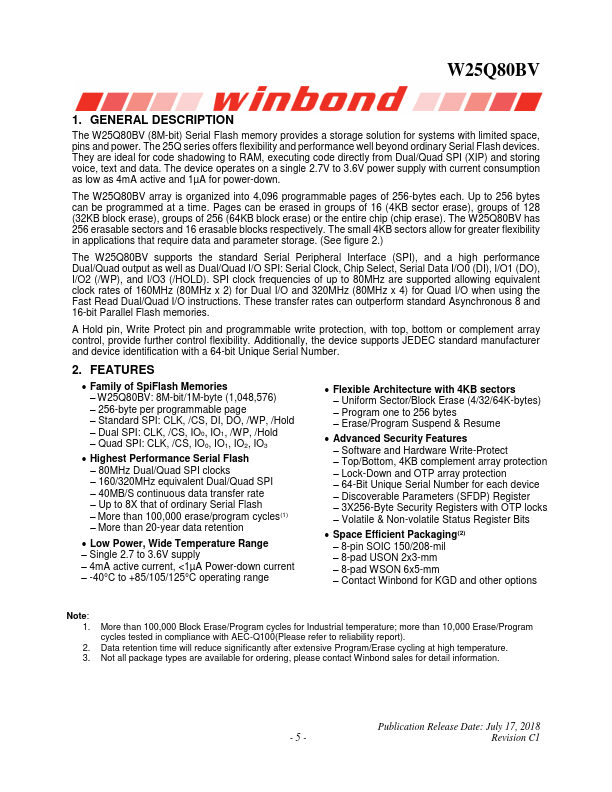

W25Q80BV 8M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI For Automotive & Industrial Plus Grades Publication Release Date: July 17, 2018 -1- Revision C1 W25Q80BV 1. GENERAL DESCRIPTION The W25Q80BV (8M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 4mA active and 1µA for power-down. The W25Q80BV array is organized into...
