W25Q80DV - 3V 8M-BIT SERIAL FLASH MEMORY

General Description

2.

Key Features

  • 5 3.

📥 Download Datasheet

Datasheet Details

Part number W25Q80DV
Manufacturer Winbond
File Size 2.19 MB
Description 3V 8M-BIT SERIAL FLASH MEMORY
Datasheet download datasheet W25Q80DV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W2512 Precision Thin Film Chip Resistors TT electronics
W255 200-MHz 24-Output Buffer Cypress Semiconductor
W256 12 Output Buffer for 2 DDR and 3 SRAM DIMMS Cypress Semiconductor
W25NM60N STW25NM60N STMicroelectronics
W25X16 Serial Flash Memory Winbond Electronics

Other Datasheets by Winbond

Part Number Description
W25Q80DVBYIG 3V 8M-BIT SERIAL FLASH MEMORY
W25Q80DVDAIG 3V 8M-BIT SERIAL FLASH MEMORY
W25Q80DVSNIG 3V 8M-BIT SERIAL FLASH MEMORY
W25Q80DVSSIG 3V 8M-BIT SERIAL FLASH MEMORY
W25Q80DVSVIG 3V 8M-BIT SERIAL FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

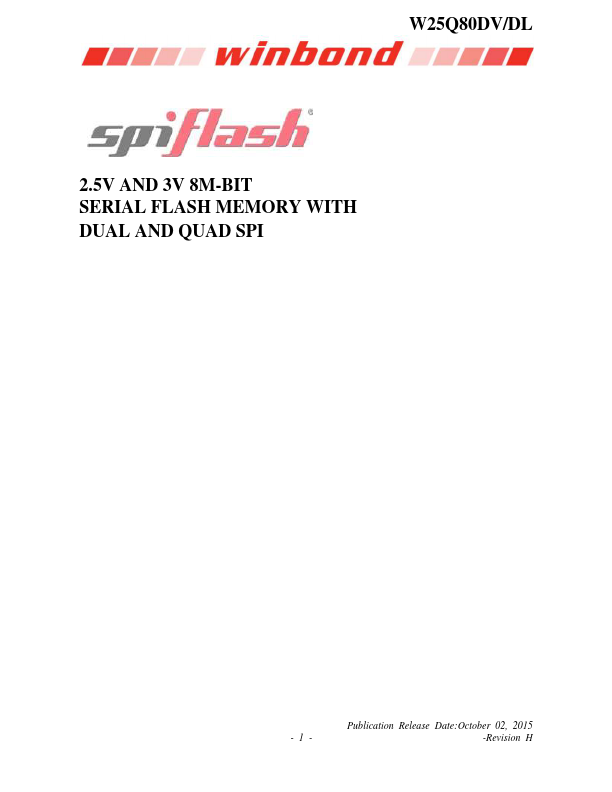

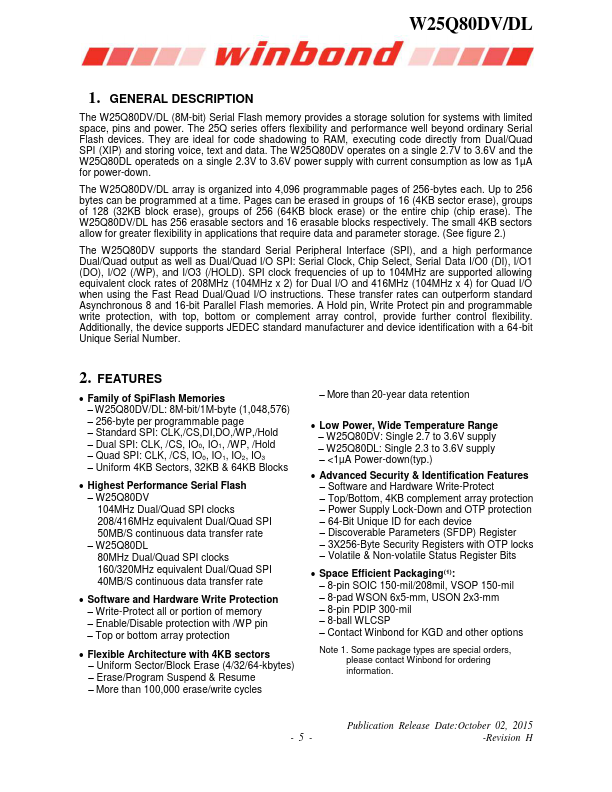

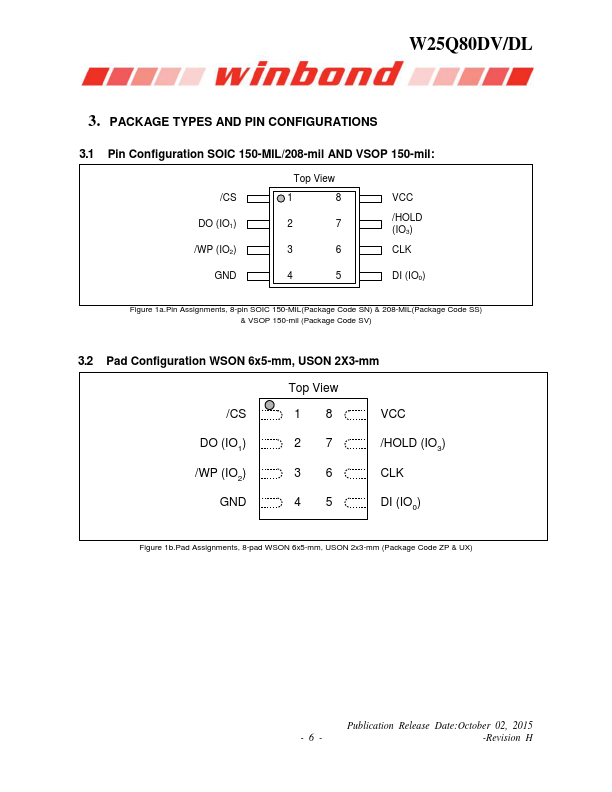

W25Q80DV/DL 2.5V AND 3V 8M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI -1- Publication Release Date:October 02, 2015 Preli mry-Revision H W25Q80DV/DL Table of Contents 1. GENERAL DESCRIPTION ......................................................................................................... 5 2. FEATURES ................................................................................................................................. 5 3. PACKAGE TYPES AND PIN CONFIGURATIONS..................................................................... 6 3.1 Pin Configuration SOIC 150-MIL/208-mil AND VSOP 150-mil:...................................... 6 3.2 Pad Configuration WSON 6x5-mm, USON 2X3-mm...................................................... 6 3.
