Datasheet Summary
W25Q80BW
1.8V 8M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI
Publication Release Date: September 01, 2014
-1-
Revision L
W25Q80BW

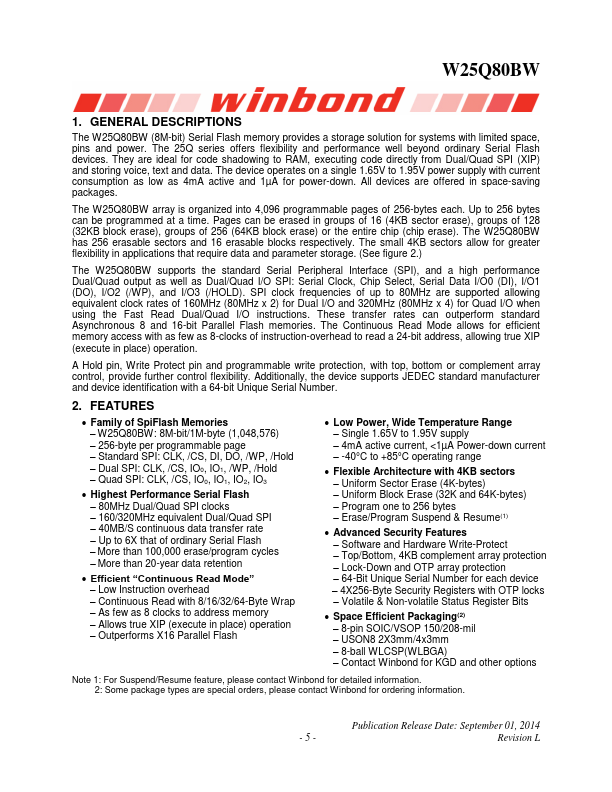

1. GENERAL DESCRIPTIONS
The W25Q80BW (8M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 1.65V to 1.95V power supply with current consumption as low as 4mA active and 1µA for power-down. All devices are offered in space-saving packages.
The W25Q80BW array...
