Datasheet Details
| Part number | W25X16BV |
|---|---|
| Manufacturer | Winbond |
| File Size | 1.48 MB |
| Description | 16M-BIT SERIAL FLASH MEMORY |
| Datasheet |
 W25X16BV Datasheet
|
|
|
| Part number | W25X16BV |
|---|---|
| Manufacturer | Winbond |
| File Size | 1.48 MB |
| Description | 16M-BIT SERIAL FLASH MEMORY |
| Datasheet |
W25X16BV Datasheet
|
|
|
|
.........................................................................................................
4 2.

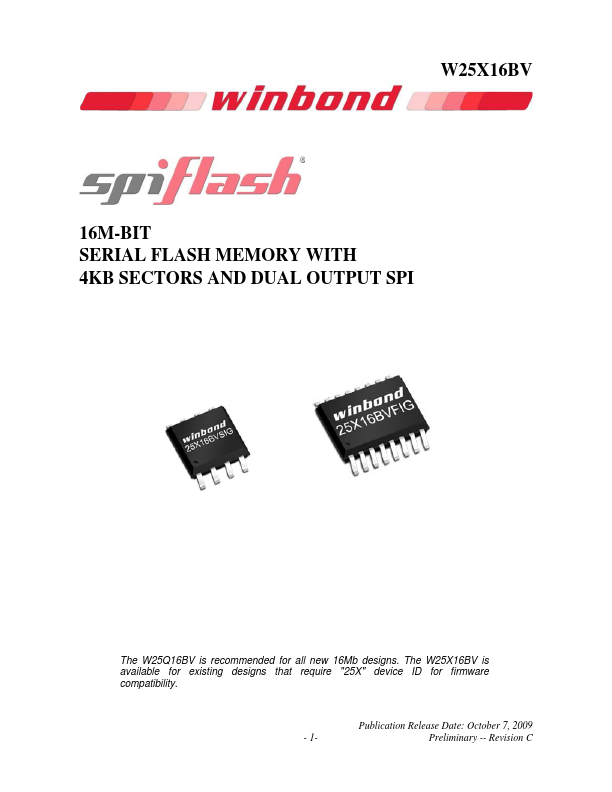

W25X16BV 16M-BIT SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI The W25Q16BV is recommended for all new 16Mb designs.
The W25X16BV is available for existing designs that require "25X" device ID for firmware compatibility.
Publication Release Date: October 7, 2009 - 1- Preliminary -- Revision C W25X16BV Table of Contents 1.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
W25X16 | Serial Flash Memory | Winbond Electronics |
|
W25X16A | Serial Flash Memory | Winbond Electronics |
| Part Number | Description |
|---|---|
| W25X16BVDAIG | 16M-BIT SERIAL FLASH MEMORY |
| W25X16BVSFIG | 16M-BIT SERIAL FLASH MEMORY |
| W25X16BVSNIG | 16M-BIT SERIAL FLASH MEMORY |
| W25X16BVSSIG | 16M-BIT SERIAL FLASH MEMORY |
| W25X16BVZPIG | 16M-BIT SERIAL FLASH MEMORY |
| W25X16ALDAIZ | Serial Flash Memory |
| W25X16ALSFIG | Serial Flash Memory |
| W25X16ALSNIG | Serial Flash Memory |
| W25X16ALSSIG | Serial Flash Memory |
| W25X16ALZPIG | Serial Flash Memory |
