W25X20AL - 2.5V SERIAL FLASH MEMORY

Download the W25X20AL datasheet PDF. This datasheet also covers the W25X40AL variant, as both devices belong to the same 2.5v serial flash memory family and are provided as variant models within a single manufacturer datasheet.

General Description

2.

Key Features

  • 4 3. PIN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W25X40AL-Winbond.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number W25X20AL
Manufacturer Winbond
File Size 0.99 MB
Description 2.5V SERIAL FLASH MEMORY
Datasheet download datasheet W25X20AL Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W25X16 Serial Flash Memory Winbond Electronics
W25X16A Serial Flash Memory Winbond Electronics
W25X32 Serial Flash Memory Winbond Electronics
W25X64 Serial Flash Memory Winbond Electronics
W2512 Precision Thin Film Chip Resistors TT electronics

Other Datasheets by Winbond

Part Number Description
W25X20ALSNIG 2.5V SERIAL FLASH MEMORY
W25X20ALZPIG 2.5V SERIAL FLASH MEMORY
W25X20A SERIAL FLASH MEMORY
W25X20AVSNIG SERIAL FLASH MEMORY
W25X20AVZPIG SERIAL FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

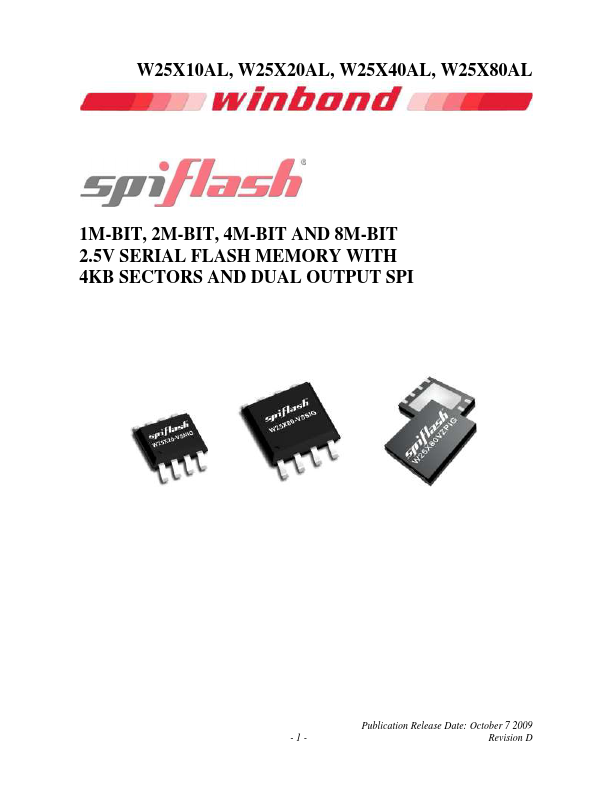

W25X10AL, W25X20AL, W25X40AL, W25X80AL 1M-BIT, 2M-BIT, 4M-BIT AND 8M-BIT 2.5V SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI Publication Release Date: October 7 2009 -1- Revision D W25X10AL, W25X20AL, W25X40AL, W25X80AL Table of Contents 1. GENERAL DESCRIPTION.......................................................................................................... 4 2. FEATURES ................................................................................................................................. 4 3. PIN CONFIGURATION SOIC 150-MIL ....................................................................................... 5 4. PIN CONFIGURATION SOIC 208-MIL ....................................................................................... 5 5.
