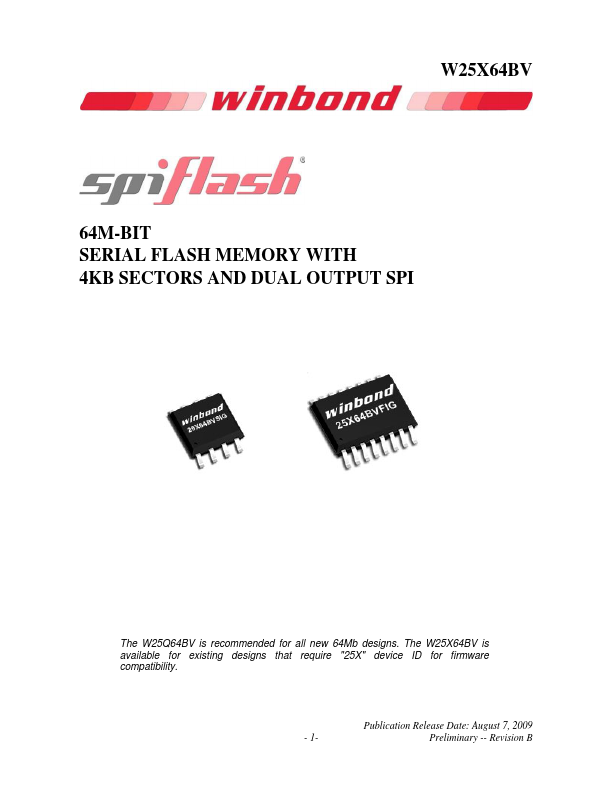

W25X64BVSFIG Overview

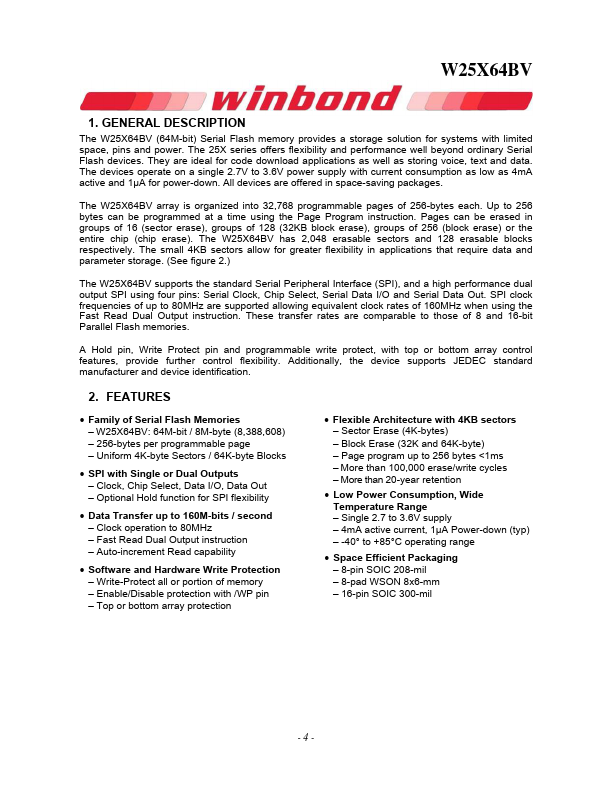

The W25X64BV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data.
W25X64BVSFIG Key Features
- Family of Serial Flash Memories
- W25X64BV: 64M-bit / 8M-byte (8,388,608)
- 256-bytes per programmable page
- Uniform 4K-byte Sectors / 64K-byte Blocks
- SPI with Single or Dual Outputs
- Clock, Chip Select, Data I/O, Data Out
- Optional Hold function for SPI flexibility
- Data Transfer up to 160M-bits / second
- Clock operation to 80MHz
- Fast Read Dual Output instruction
