W25X80A - SERIAL FLASH MEMORY

General Description

2.

Key Features

  • 4 3. PIN.

📥 Download Datasheet

Datasheet Details

Part number W25X80A
Manufacturer Winbond
File Size 1.32 MB
Description SERIAL FLASH MEMORY
Datasheet download datasheet W25X80A Datasheet

Full PDF Text Transcription for W25X80A (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for W25X80A. For precise diagrams, and layout, please refer to the original PDF.

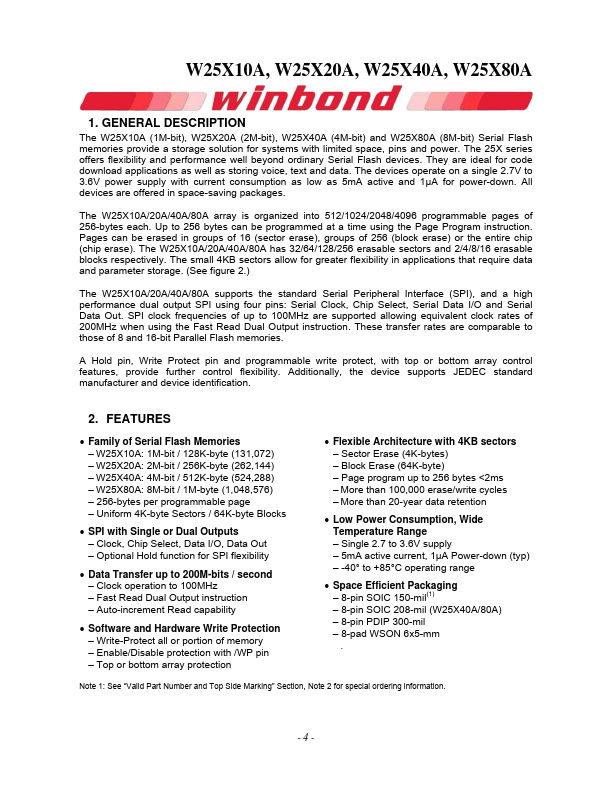

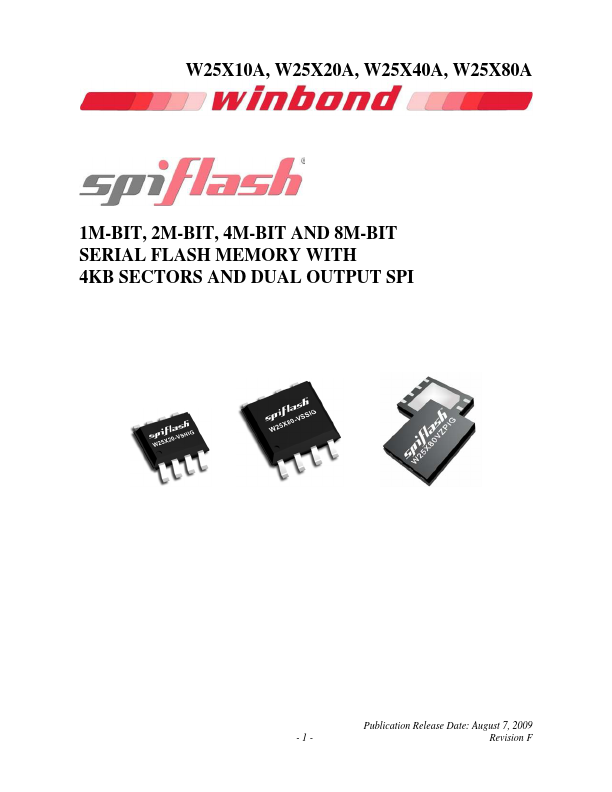

W25X10A, W25X20A, W25X40A, W25X80A 1M-BIT, 2M-BIT, 4M-BIT AND 8M-BIT SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI Publication Release Date: August 7, 2009 -1-...

View more extracted text

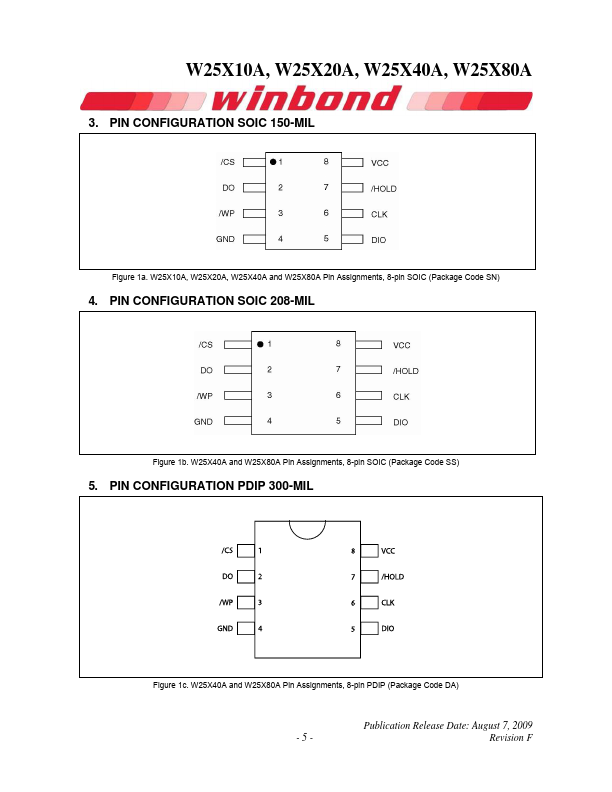

CTORS AND DUAL OUTPUT SPI Publication Release Date: August 7, 2009 -1- Revision F W25X10A, W25X20A, W25X40A, W25X80A Table of Contents 1. GENERAL DESCRIPTION ......................................................................................................... 4 2. FEATURES ................................................................................................................................. 4 3. PIN CONFIGURATION SOIC 150-MIL....................................................................................... 5 4. PIN CONFIGURATION SOIC 208-MIL................................................................
